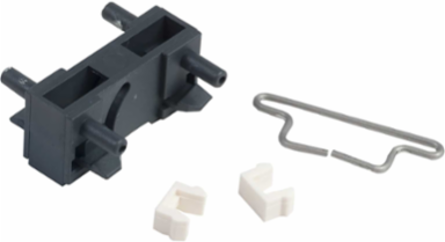

Schneider Electric LAD9V2 TeSys Deca Mechanical Interlock for LC1D09-D38 & LC1DT20-DT40, 0.04 kg
- MPN: LAD9V2
- PPN: SCH-LAD9V2
CAD
$58.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca mechanical interlock, for contactors LC1D09-D38 and LC1DT20-DT40. To be used for reversing and changeover assemblings. Without electrical interlocking.
Features
- This heavy-duty mechanical interlock establishes a foolproof physical barrier between paired reversing or changeover contactors, making it impossible for both units to close their main contacts simultaneously.
- Engineered exclusively for the globally trusted TeSys Deca platforms, this precision-molded module seamlessly snaps onto 3-pole and 4-pole LC1D09 through LC1D38, as well as LC1DT20 through LC1DT40 contactors. The proprietary housing geometry is perfectly tuned to the exact lever action and spring tension of these specific frames, giving automation builders a highly reliable, flush-mount fit without requiring generic modifications.
- Designed with an ultra-slim profile that mounts directly to the front face of your motor controls, this component leaves all adjacent terminal housings, wire channels, and heat-dissipation vents entirely unobstructed. Because it is completely passive and contains no resistive electrical elements, it generates zero ambient heat, keeping your control enclosure temperatures stable even when switching heavy 38A inductive loads
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United Kingdom, United States
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Circuit Type
- reversing, changeover
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Service Catalog Item
- Finished good
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1904
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- LAD9
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- TeSys
- Returnability
- Yes
- Accessory / Separate Part Category
- interlocking accessory
- Package Weight(Lbs)
- 11.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Number Of Poles3P, 4P
Local Publishable Date2026-07-07
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeOut
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameLAD9
Interlocking Typemechanical
Product Or Component Typemechanical interlock
Range Of ProductTeSys Deca
Sustainable PackagingYes
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Product CompatibilityLC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38, LC1DT20, LC1DT25, LC1DT32, LC1DT40
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- mechanical interlock
Range Of ProductTeSys Deca
