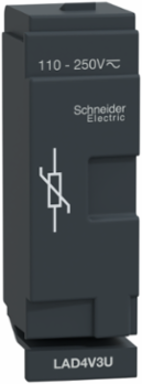

Schneider Electric LAD4V3U TeSys Deca Suppressor Module for 110-250V AC/DC with Varistor Protection
Schneider Electric LAD4V3U TeSys Deca Suppressor Module for 110-250V AC/DC with Varistor Protection
- MPN: LAD4V3U
- PPN: SCH-LAD4V3U
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$64.32/ EA
Description
TeSys D suppressor module, for LC1D40A-D80A, LC1DT60A-DT80A contactors. To be used with 110-250V AC or DC control circuit voltage, it provides a varistor protection limiting the transient voltage to 2 Uc max. Clip-on front mounting, overall size of the contactor is unchanged. Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Product Certifications
- UL || CSA
- Standards
- IEC 60947-5-1 || EN 60947-5-1 || CSA C22.2 No 60947-5-1 || UL 60947-5-1 || GB/T 14048.5
- Ambient Air Temperature For Storage
- -40-80 °C
Ambient Air Temperature For Operation-25-55 °C
Ip Degree Of ProtectionIP2XIEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111253EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- [Uc] Control Circuit Voltage
- 110...250 V AC/DC || 50/60 Hz
- Mounting Location
- side
- Mounting Mode
- by clips
- Suppressor Technology
- varistor (peak limiting)
Net Weight0.02 kg
Maximum Peak Voltage2 Uc
Colourdark grey
Specifications
- Product Or Component Type
- suppressor module
- Product Compatibility
- 3P LC1D40A...D80A || 4P LC1DT60A...DT80A
RangeTeSys || TeSys Deca
Device Short NameLAD4
