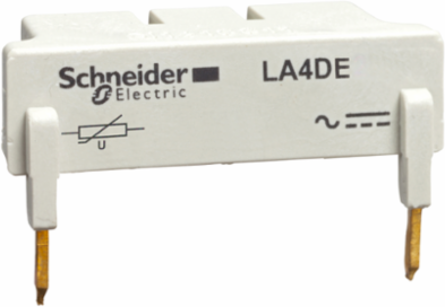

Schneider Electric LA4DE3E TeSys Deca Suppressor Module, Varistor, 24-48V DC, IP2X Protection
- MPN: LA4DE3E
- PPN: SCH-LA4DE3E
CAD
$72.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys D suppressor module, for LC1D80-D95 (3P), LP1D40-D80 (4P) contactors. To be used with 24-48V DC control circuit voltage, it provides varistor protection limiting the transient voltage to 2 Uc max. Mounting on top of contactor, screw fixing and connection on coil terminals. Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- suppressor module
- Product Compatibility
- 4P LP1D80 || 3P LC1D80...D95
RangeTeSys
Device Short NameLA4D
Complementary
- [Uc] Control Circuit Voltage
- 24...48 V DC
- Mounting Location
- top
- Mounting Mode
- by screws
Net Weight0.018 kg
Maximum Peak Voltage2 Uc
Suppressor Technologyvaristor (peak limiting)
Environment
- Product Certifications
- UL || CSA
- Standards
- IEC 60947-5-1 || EN 60947-5-1 || CSA C22.2 No 60947-5-1 || UL 60947-5-1 || GB/T 14048.5
- Ambient Air Temperature For Storage
- -40-80 °C
Ambient Air Temperature For Operation-25-55 °C
Ip Degree Of ProtectionIP2XIEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111253EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
