Schneider Electric CA4KN31BW3 TeSys K Control Relay 4 Pole 690V 24V DC Low Consumption
Schneider Electric CA4KN31BW3 TeSys K Control Relay 4 Pole 690V 24V DC Low Consumption
- MPN: CA4KN31BW3
- PPN: SCH-CA4KN31BW3
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$160.68/ EA
Description

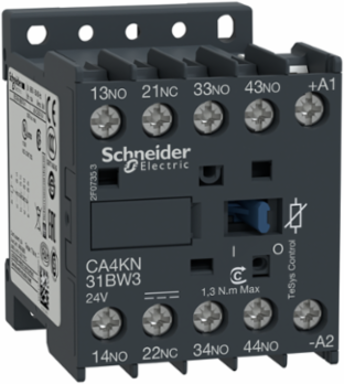

TeSys K control relay, 4 contacts (3NO+1NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a low consumption 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).
Specifications
Environment
- Product Certifications
- CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
- Ambient Air Temperature For Operation
- -25-50 °C
- Flame Retardance
- V1 UL 94 || requirement 2 NF F 16-101 || requirement 2 NF F 16-102
- Protective Treatment
- TC IEC 60068
- Operating Altitude
- 2000 m without derating
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || shocks contactor open10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed15 Gn for 11 ms IEC 60068-2-27
StandardsEN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1
Ambient Air Temperature For Storage-50-80 °C
Ip Degree Of ProtectionIP2X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1503003EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1503003EN
Complementary
- Minimum Switching Current
- 5 mA
- Control Circuit Voltage Limits
- drop-out: 0.1...0.75 Uc (at <50 °C) || operational: 0.7...1.3 Uc (at <50 °C)
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 50 °C)
- Immunity To Microbreaks
- 2 ms
- Insulation Resistance
- > 10 MOhm
- Associated Fuse Rating
- 10 A gG conforming to IEC 60947 || 10 A gG conforming to VDE 0660
- Connections - Terminals
- screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible with cable end || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-1.5 mm²flexible with cable end || screw clamp terminals 2 0.34-1.5 mm²flexible without cable end
- Minimum Switching Voltage
- 17 V
- Tightening Torque
- 1.3 N.m screw clamp terminals flat Ø 6 mm || 1.3 N.m screw clamp terminals Philips No 2 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2
- Inrush Power In W
- 1.8-1.8 W 20 °C)
- Width
- 45 mm
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947 || 750 V VDE 0110 group C || 690 V BS 5424 || 600 V CSA C22.2 No 14
Height58 mm
Non Overlap Distance0.5 mm
Mounting Supportrail || plate
Hold-In Power Consumption In W1.8-1.8 W 20 °C
Irms Rated Making Capacity110 A IEC 60947
Net Weight0.235 kg
Coil Technologybuilt-in bidirectional peak limiting diode suppressor
Maximum Operating Rate6000 cyc/h
Mechanical Durability30 Mcycles
Operating Time10...20 ms coil de-energisation and NO opening || 15...25 ms coil de-energisation and NC closing || 30...40 ms coil energisation and NO closing || 25...35 ms coil energisation and NC opening
Depth57 mm
Heat Dissipation1.8-1.8 W
Specifications
- [Ue] Rated Operational Voltage
- <= 690 V <= 400 Hz
- [Uc] Control Circuit Voltage
- 24 V DC
- Product Or Component Type
- control relay
- Range
- TeSys
- Utilisation Category
- DC-13 || AC-15
Control Circuit TypeDC low consumption
Contactor Applicationcontrol circuit
Product NameTeSys CAK
Pole Contact Composition3 NO + 1 NC
Device Short NameCA4K
