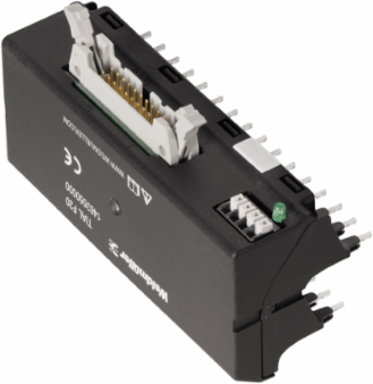

Weidmuller 1463550000 TIAL F20
- MPN: 1463550000
- PPN: WDM-1463550000
CAD
$180.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet

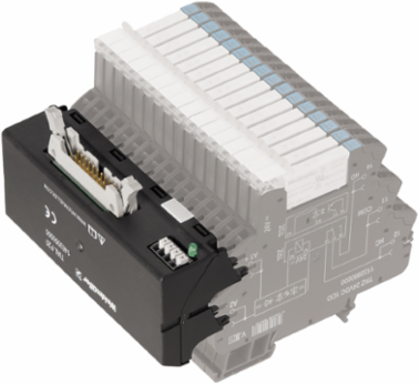

Description
TERMSERIES, Adapter, 20-pole plug according to DIN EN 60603-13, long locking lever, Number of signal paths: 16, Rated voltage : 24 V DC, Rated current (per signal path): 60 mA
Documentation & Downloads
Specifications
General Data
- Colour
- black
UL 94 flammability ratingV-0
Connection Data (Supply)
- Wire connection method
- PUSH IN
- Clamping range, rated connection, min.
- 0.13 mm²
- Blade size (supply)
- 0.6 x 3.5 mm
Number of terminals4 (+,+,−,−)
Clamping range, rated connection, max.1.5 mm²
Approvals
- Approvals
- CE, CULUS, DNV GL
- UL File Number Search
- E141197
ROHSConform

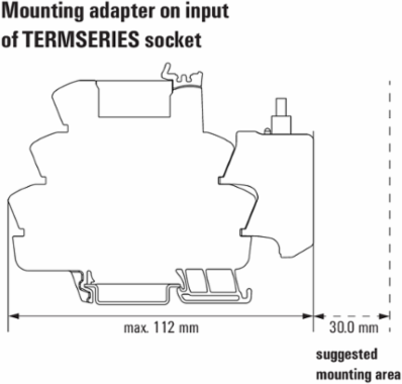

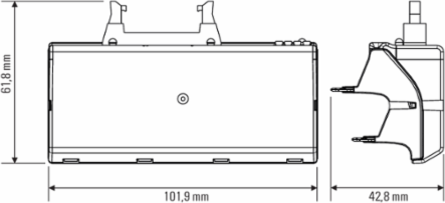

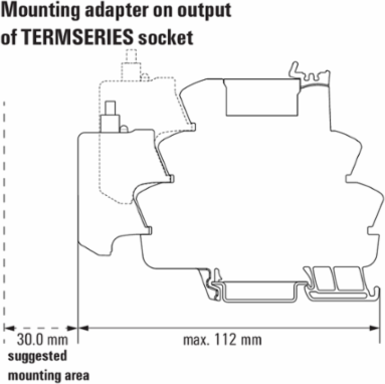

Dimensions And Weights
- Width
- 102 mm
- Height
- 43 mm
- Depth
- 62 mm
- Net weight
- 88.4 g
Width (inches)4.016 inch
Height (inches)1.693 inch
Depth (inches)2.441 inch

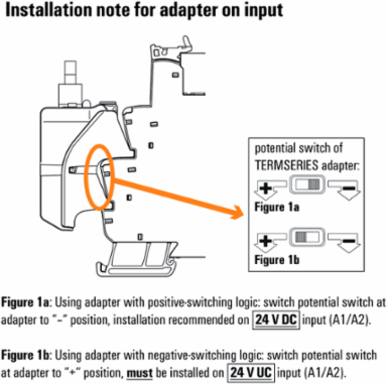

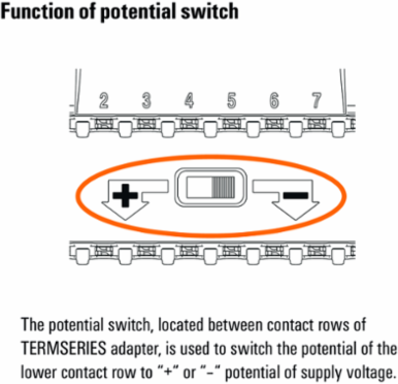

Supply
- Voltage supply
- 24 V DC ± 20 %
Status displayGreen LED
Classifications
- ETIM 6.0
- EC002780
- eClass 9.0
- 27-14-11-52
- eClass 10.0
- 27-14-11-52
ETIM 7.0EC002780
eClass 9.127-14-11-52

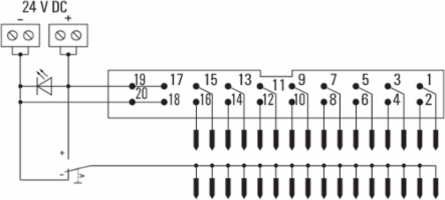

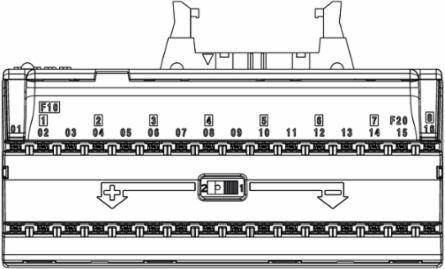

Connection Data (Signal)
- Plug type
- 20-pole plug according to DIN EN 60603-13, long locking lever
Signals
- Current (per signal path), max.
- 1 A
- Rated current (per signal path)
- 60 mA
- Total current of all signals, max.
- 1 A
Number of signal paths16
Rated voltage24 V DC
Voltage, max.30 V DC
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Rated voltage
- 32 V
- Surge voltage category
- III
- Protection degree
- IP20 in installed state
Pollution severity2
Impulse withstand voltage1.5 kV
Temperatures
- Humidity
- 5...95% (indoor), Tu = 40°C, without condensation
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Operating temperature, max.60 °C
Storage temperature, max.85 °C
Operating temperature-40 °C...60 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E141197
Further Details Of Approvals / Standards
- Certificate no. (cULus)
- E141197
