Schneider Electric VZ10 Terminal shrouds,TeSys Control,for V5 / V6

Terminal shrouds,TeSys Control,for V5 / V6
  • MPN: VZ10
  • PPN: SCH-VZ10

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$10.94/ EA

Description

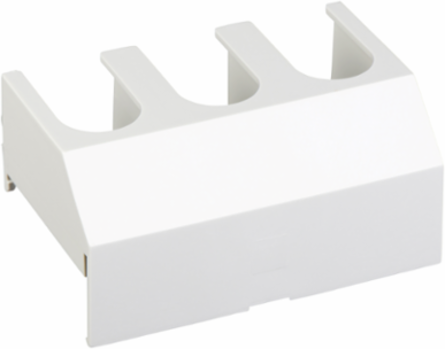

TeSys Vario 3-pole terminal protection shroud, for TeSys Vario switch-disconnectors. To be used with V5 and V6 switch bodies. The shroud protects against direct contact on terminals by providing a front face IP20 protection. Green Premium compliant (RoHS/REACh).

Specifications

Complementary

Net Weight
60 g

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2211006
Pvc Free
Yes
Eu Rohs Directive
Compliant with Exemptions
Halogen Content Performance
Halogen free product
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold

Specifications

Poles Description
3P
Product Or Component Type
terminal shroud
Device Short Name
VZ
Accessory / Separate Part Categoryprotection accessory
Product CompatibilityV6 || V5
RangeTeSys

Contractual warranty

Warranty
18 months
