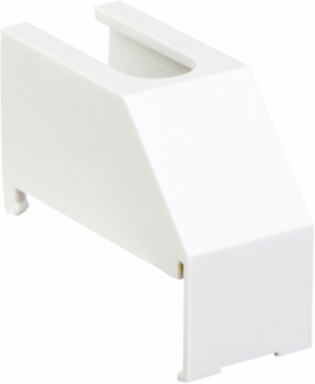

Schneider Electric VZ29 TeSys Vario Terminal Shroud for Auxiliary Contact Block, IP20 Protection
- MPN: VZ29
- PPN: SCH-VZ29
- UNSPSC: 39122233
CAD
$5.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
VZ29 is a 1-pole terminal protection shroud for TeSys Vario switch-disconnectors from Schneider Electric. To be used with auxiliary contact modules VZ7 and VZ20. The shroud protects against direct contact on terminals by providing a front face IP20 protection.
Features
- Reliable in case of mistouch on terminals
- Environmental compliant (RoHS/REACh)
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Czechia |
|---|
| Weight | 5 g |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Carbon Footprint Of The Distribution Phase A4 | 0.0009743338386300768, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0004383873488283654, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 29 kg CO2 eq., 28.971796700100345 |
| Local Publishable Date | 2026-06-27 |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | VZ |
| Product Or Component Type | terminal shroud |
| Returnability | No |
| Sustainable Packaging | No |
| Database Version | 2023-02 |
| Accessory / Separate Part Category | protection accessory |
| Customs Code | 8538908160 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 57 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0 kg CO2 eq., 0.013259221513581014 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0 kg CO2 eq., 0.0315841730168271 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1936 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Compatibility Code | terminal shrouds |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range | TeSys |
| Software Version | v6.1 |
| Total Lifecycle Carbon Footprint | 29 kg CO2 eq. |
| Data Source | extrapolated product |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free product |
| Functional Unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 433.62 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Halogene Performance | Halogen free product |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 29.018052815818212 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | auxiliary contact block |
| Pep Code | ENVPEP2211006EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2211006EN |
| Halogen Content Performance | Halogen free product |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-08-05 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | terminal shroud |
|---|
ETIM
| ETIM 8 | EC002498 |
|---|---|
| ETIM 10 | EC002498 |
| ETIM 9 | EC002498 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
