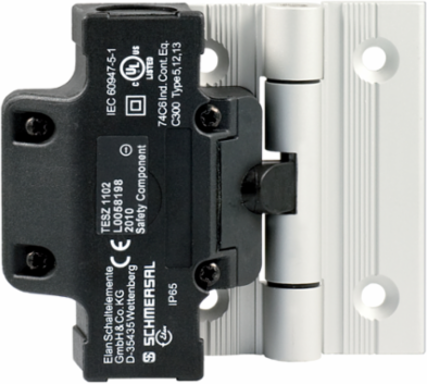

Schmersal 101029152 Hinge Safety Switch TESZ1110/S 111.5 mm x 92 mm x 36 mm, IP65, 3 Safety Contacts
- MPN: 101029152
- PPN: SCM-101029152
CAD
$371.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Hinge Safety Switch TESZ1110/S 111.5 mm x 92 mm x 36 mm, IP65, 3 Safety Contacts
Features
- 2 cable entries M 20 x 1.5
- Simple fitting, especially on 40 mm profiles
- Thermoplastic enclosure
- Double-insulated
- Good resistance to oil and petroleum spirit
- 111,5 mm x 92 mm x 36 mm
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 2.5 A
- Utilisation category AC-15
- 2 A
- Utilisation category DC-13
- 1 A
- Switching principle
- Slow action
- Material of the contacts, electrical
- Silver
Utilisation category AC-15230 VAC
Utilisation category DC-1324 VDC
Switching elementOpener (NC)
Switching frequency120 /h
Note
- Note (General)
- The opening angle has been set to 4° in factory. | The additional hinge including mounting accessories is also available separately, part number TES/S

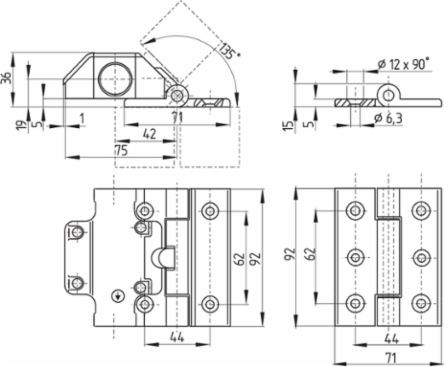

Mechanical data - Dimensions
- Length x Width x Height
- Suitable for mounting to profile systems: 40 mm
- Width of sensor
- 111.5 mm
Length of sensor36 mm
Height of sensor92 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 250 VAC
Rated impulse withstand voltage U2.5 kV
Safety classification - Safety outputs
- B
- 2,000,000 Operations
B1,000,000 Operations
General data - Features
- mounting hinge
- Yes

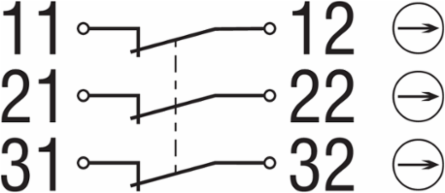

Number of safety contacts3
General data
- Standards
- BG-GS-ET-15 | EN IEC 60947-5-1
- Material of the hinge
- Aluminium
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross weight284 g
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP65
Ambient temperature-25 ... +65 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 1 mm²
Cable section, minimum0.5 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Positive break force, minimum
- 1 N
Positive break angle14 °
Approvals - Standards
- Certificates
- BG | IFA | cULus | CCC
