Schmersal 151181536 Foot Switch with Protective Shield, IP65, Height 189 mm, Aluminium Housing
- MPN: 151181536
- PPN: SCM-151181536
CAD
$533.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

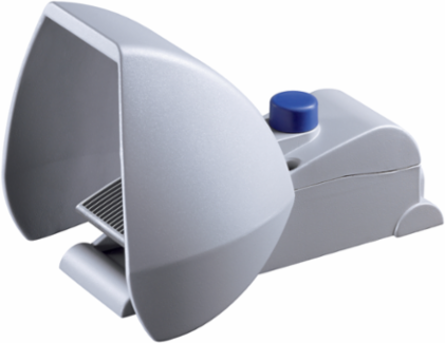

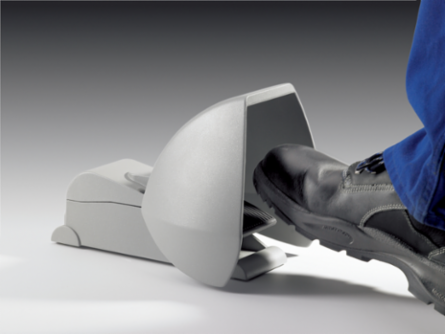

Foot Switch with Protective Shield, IP65, Height 189 mm, Aluminium Housing
Features
- 2 Contacts
- 1 Cable entry M 20 x 1.5
- Protective shield with wide opening
- Low operating height of pedal
- High level of stability
Documentation & Downloads
Specifications
Key Specifications
- Width
- 170 mm
- Depth
- 274 mm
Height189 mm

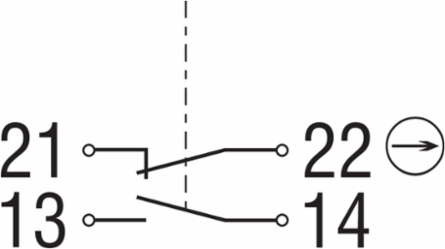

Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 230 VAC
- Utilisation category DC-13
- 24 VDC
- Switching element
- NO contact, NC contact
- Switching frequency
- 3,600 /h
Required rated short-circuit current1,000 A
Utilisation category AC-154 A
Utilisation category DC-131 A
Switching principleSlow action

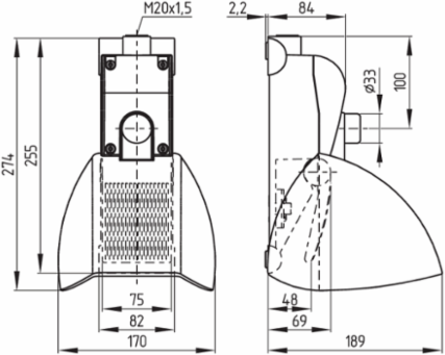

Mechanical data - Dimensions
- Width
- 170 mm
- Depth
- 274 mm
Height189 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
- Overvoltage category
- III
Rated impulse withstand voltage U6 kV
Degree of pollution3
Safety classification - Safety outputs
- B
- 100,000 Operations
General data - Features
- Probing possible
- Yes
- Suitable for EMERGENCY-OFF
- Yes

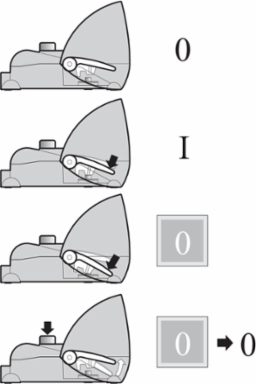

LatchingYes
General data
- Standards
- BG-GS-ET-15 | DIN VDE 0660-200 | EN IEC 60947-5-1
- Enclosure coating material
- powder-coated
- Material of the pedal
- Glass-fibre, reinforced thermoplastic
- Colour of the product
- White aluminum
Enclosure materialAluminium
Material of the housing coverAluminium
Material of the protective shieldAluminium
Gross weight1,765 g
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP65
- Storage and transport temperature, minimum
- -25 °C
- Relative humidity, minimum
- 30 %
- Note (Relative humidity)
- non-condensing | non-icing
- Restistance to shock
- 30 g / 11 ms
Ambient temperature-25 ... +60 °C
Storage and transport temperature, maximum+85 °C
Relative humidity, maximum95 %
Resistance to vibrations10 … 150 Hz, amplitude 0.35 mm / 5 g
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Note (Cable section)
- All indications including the conductor ferrules.
Cable section, maximum2.5 mm²
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
