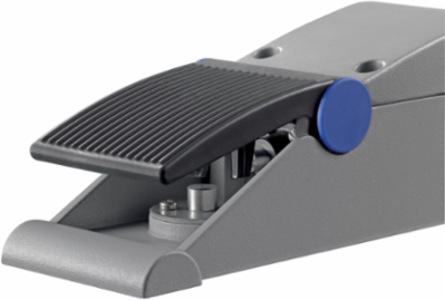

Schmersal 151181537 Automation Foot Switch with Metal Enclosure, 170 mm Width, IP65 Rated
- MPN: 151181537
- PPN: SCM-151181537
CAD
$280.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Automation Foot Switch with Metal Enclosure, 170 mm Width, IP65 Rated
Features
- 2 Contacts
- Also available as safety foot switch
- Low operating height of pedal
- Cable entry M 20 x 1.5
- High level of stability
- Metal enclosure
- single-pedal types
Documentation & Downloads
Specifications
Key Specifications
| Width | 170 mm |
|---|---|
| Depth | 274 mm |
| Height | 189 mm |
|---|
Electrical data
| Thermal test current | 10 A |
|---|---|
| Utilisation category AC-15 | 4 A |
| Utilisation category DC-13 | 1 A |
| Switching principle | Snap action |
| Utilisation category AC-15 | 230 VAC |
|---|---|
| Utilisation category DC-13 | 24 VDC |

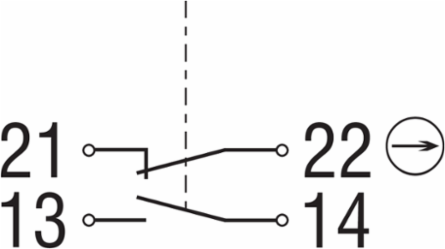

| Switching element | NO contact, NC contact |

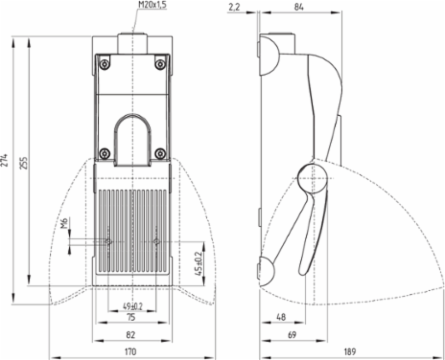

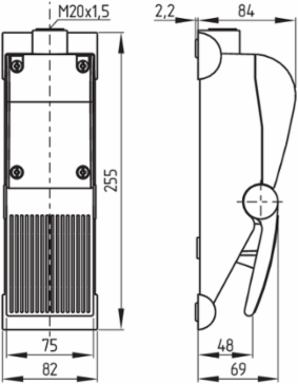

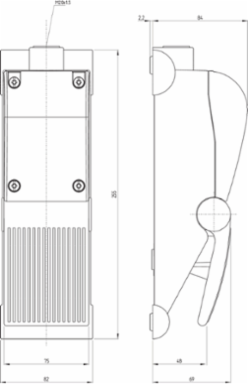

Mechanical data - Dimensions
| Width | 170 mm |
|---|---|
| Depth | 274 mm |
| Height | 189 mm |
|---|
Ambient conditions - Insulation values
| Rated insulation voltage U | 500 V |
|---|
| Rated impulse withstand voltage U | 6 kV |
|---|
General data - Features
| Probing possible | Yes |
|---|---|
| Number of normally open (NO) | 1 |
| Number of normally closed (NC) | 1 |
|---|
General data
| Standards | BG-GS-ET-15 | DIN VDE 0660-200 | EN IEC 60947-5-1 |
|---|---|
| Enclosure coating material | powder-coated |
| Material of the pedal | Glass-fibre, reinforced thermoplastic |
| Colour of the housing | RAL 9006 (White aluminum) |
| Enclosure material | Aluminium |
|---|---|
| Material of the housing cover | Aluminium |
| Material of the protective shield | Aluminium |
| Gross weight | 1,181 g |
Ambient conditions
| Degree of protection | IP65 |
|---|
| Ambient temperature | -25 ... +70 °C |
|---|
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|---|
| Note (Cable section) | All indications including the conductor ferrules. |
| Cable section, maximum | 1 x 2.5 mm² |
|---|
Mechanical data
| Mechanical life, minimum | 1,000,000 Operations |
|---|
Approvals - Standards
| Certificates | cULus | CCC |
|---|
