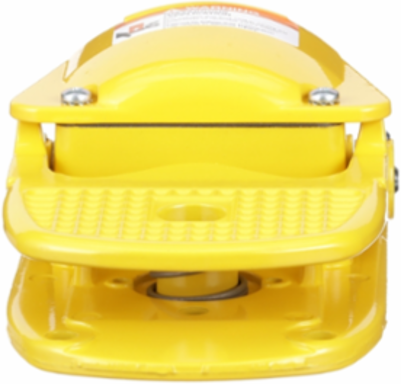

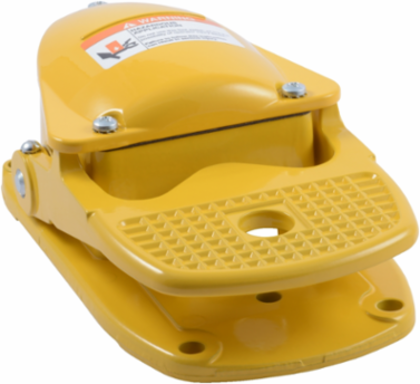

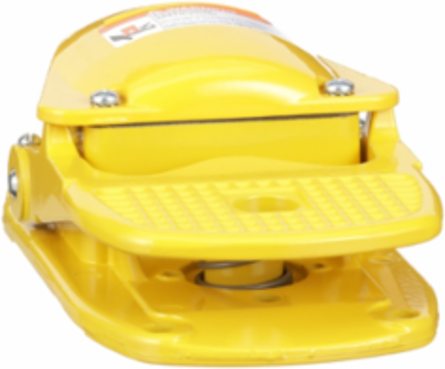

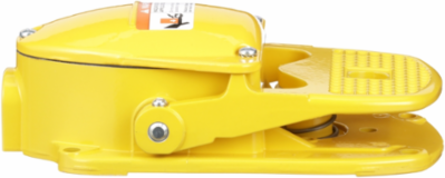

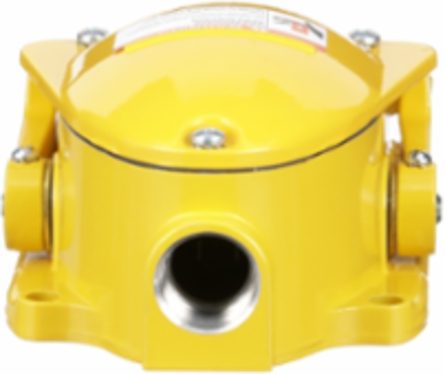

Square D 9002AW1 Industrial Foot Switch, SPDT Contact, NEMA 2/4/13, 5A at 600V AC
- MPN: 9002AW1
- UPC: 785901815433
- PPN: SCH-9002AW1
CAD
$396.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
9002AW NEMA industial foot switches are heavy duty devices to used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has no sheilding. The single pole double throw snap switch used for the foot switch contact is rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. Snap switch contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. This foot switch is UL listed and CSA certified.
Features
- Housed in a rugged, heavy-duty die-cast enclosure, this foot switch is fully gasketed to repel water, oil, and dust, making it ideal for food processing and industrial manufacturing. The superior environmental sealing prevents internal corrosion and electrical shorts, ensuring reliable machine control even in the most demanding "wet" or outdoor conditions.
- Equipped with a full metal protective shield over the pedal, this 9002AW1 unit prevents the dangerous unintended starts caused by falling tools or accidental stepping. This crucial safety feature acts as a physical barrier, protecting your personnel from injury and your equipment from mechanical damage, while maintaining strict compliance with industrial safety protocols.
- Featuring a sophisticated SPDT contact arrangement with two-stage operation, this switch allows operators to initiate different machine sequences based on foot pressure. This tactile control is perfect for high-precision tasks like metal forming or industrial sewing, giving your workforce the ability to manage complex cycles without taking their hands off the workpiece.
- Specifically engineered to resist the ingress of cutting fluids, lubricants, and airborne metallic debris common in CNC and fabrication shops. The robust mechanical linkage is designed for millions of cycles, reducing your long-term maintenance costs and preventing the "sticky" pedal failures that often plague lower-grade consumer alternatives.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth216 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CSA, UL Listed
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.6 kg CO2 eq., 0.5907183013
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 9 kg CO2 eq., 9.4740849343
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2525
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Cable Entry
- 0.75 inch NPT conduit entrance
- Device Composition
- unshielded
- Product Or Component Type
- foot switch
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 10 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- XPE metal, single foot switch is an ideal solution for providing start and stop instructions for many types of industrial machines, running in various operating modes like normal (pulsed) start, inching, hold to run. It is designed such that the operating pedal is close to the ground and at a comfortable angle. It is delivered without a protective cover, this makes it suitable for applications where the issuing of the start instruction presents a reduced level of danger.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 13
- Width Nominal
- 114 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509040
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.1845134479, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.225216178, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contact Operation1 step
Product AvailabilityStock - Normally stocked in distribution facility
Range Of Product9002AW
Software Versionv5.9.4
Switch FunctionSPDT
Type Of Operatorspring return
Pep CodeENVPEP2506039EN
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; US
Height Nominal99 mm
[Ue] Rated Operational Voltage600 V AC/DC
Package Weight(Lbs)1.406 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 10.4745328615
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2506039EN
Nema Degree Of ProtectionNEMA 4/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2506039EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- foot switch
Range Of Product9002AW
ETIM
- ETIM 8
- EC001258
ETIM 9EC001258
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
