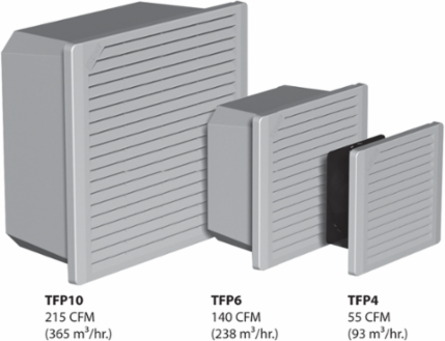

Nvent Hoffman TFP41 TFP4 Side-Mount Filter Fan Type 1, 115V 55CFM, Light Gray, Composite

TFP4 Side-Mount Filter Fan Type 1, 115V 55CFM, Light Gray, Composite
  • MPN: TFP41
  • UPC: 783510413491
  • PPN: HOF-TFP41
  • UNSPSC: 40101604

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$378.00/ EA

Description

TFP Side-Mount Fans provide enclosure cooling with limited space using filtered airflow cooling. This TFP4 Side-Mount Filter Fan Type 1, TFP41 item is rated 115V 55CFM with material of Composite color Lt Gray.

Features

  • Cooling Fan Package includes fan, air filter, composite air plenum, finger guard and grille
  • Exhaust Package includes air filter, filter retainer with integral finger guard and grille
  • EMC Upgrade Kit includes a grille standoff collar and a special EMC shielding grille
  • Reliable cooling for enclosures with limited space requiring simple filtered airflow for basic cooling
  • 24 VDC, 115 VAC and 230 VAC options available
  • Washable foam (Type 1) or disposable (Type 12) filter in fan
  • Dynamically-balanced fan impellers molded from polycarbonate material
  • 4-inch fan is thermally protected and uses permanently-lubricated ball bearings
  • 6- and 10-inch fans have ball bearing construction and split-capacitor motors that are thermally protected to avoid premature failure
  • Fans have lead wires for power connection with ends stripped 1/2 in. (12 mm)
  • All mounting hardware and installation instructions are furnished
  • Free airflow from 45 CFM (76 mm cu/hr.) to 215 CFM (365 mm cu/hr.)
  • Maximum operating temperature 158 F / 70 C
  • Engineered for 50,000 hours of continuous operation without lubrication or service (a monthly maintenance schedule is recommended to ensure optimal cooling performance)

Specifications

Specifications

BABA
Contact Manufacturer
Nominal Voltage
115
Width (W)
187
Max Current
0.21
Finish
Smooth Matte
Color Code
RAL 7035
Size
6 x 7 x 3 in
Voltage Rating
100 - 120 VAC
Ambient Temperature
158 Deg F max
Airflow93
Height (H)160
Depth (D)76
MaterialComposite
ColorLight Gray
Weight2
Flow Rate55 CFM max
Amperage Rating.21 A
