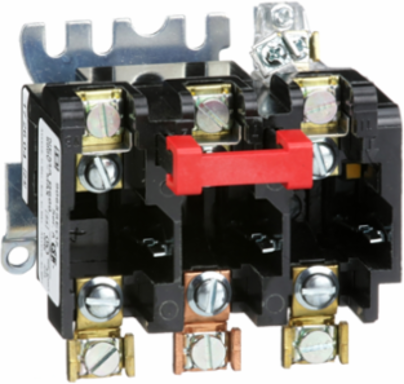

Square D 9065SEO5 Overload Relay 25A 600VAC NEMA Size 00/1 3-Pole Melting Alloy

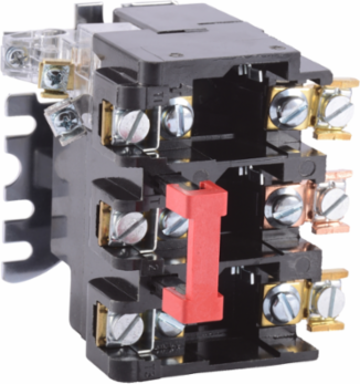

Square D 9065SEO5 Overload Relay 25A 600VAC NEMA Size 00/1 3-Pole Melting Alloy
- MPN: 9065SEO5
- UPC: 785901878827
- PPN: SCH-9065SEO5
- UNSPSC: 39122330
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$282.25/ EA
Description
Overload relays are intended to protect motors, controllers, and branch-circuit conductors against excessive heating due to prolonged motor over currents up to and including locked rotor currents. Protection of the motor and the other branch circuit components from higher currents, due to short circuits or grounds, is a function of the branch circuit fuses, circuit breakers, or motor short circuit protectors. The exclusive one piece melting alloy thermal unit is used in these relays to provide protection against overheating of the motor winding insulation due excessive over current. The melting alloy thermal unit to be used is determined by the full load current of the motor to be controlled, number of phases and the enclosure size. This 25A separate mount overload relay can be used with NEMA size 00, 0 or 1 three phase starters with 3 poles. When 3 thermal units are properly installed the relay can be reset. Overload relay has a trip free reset mechanism. The output contact is replaceable. Relay has a maximum voltage rating of 600 VAC. This overload relay is 3.31 inches tall, 3.53 inches wide and 3.97 inches deep. This separate mount overload relay is UL Listed and CSA Certified.
Features
- Comes standard installed both non-reversing and reversing and combination and multispeed starters
- Simple Installation
- Field interchangeable thermal units for replacement motor installations
- Available as direct mount or separate mount
- Provides thermal protection for the most costly equipment
Specifications
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase A4
- 0.38409437304381017, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.24249274424989473, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 5 kg CO2 eq., 5.069037029711683
- Local Publishable Date
- 2025-11-13
- Serviceability
- No
- Field Service Division
- PPIBS
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1312002EN
- ROHS EUR Status
- Will not be Compliant
- ROHS EUR Full Compliance Status Id
- NOT_COMPLIANT
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Energy Efficiency Optimized
- False
- Package Weight Lbs
- 462.664 g
- Range Of Product
- Separate Mounting
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 13 kg CO2 eq.
- Ue Rated Operational Voltage2
- 600 V AC
- Stocking Flag
- N
- Pep Code
- ENVPEP1312002EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Ue Rated Operational Voltage5
- 600 V AC
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End Of Life Phase C1 To C40.8 kg CO2 eq., 0.7509483737815297
Carbon Footprint Of The Manufacturing Phase A1 To A36 kg CO2 eq., 6.434363757914797
Local Data StatusPublishable
ManufacturerSchneider Electric
TraceabilityNo
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusNot compliant
China ROHS In ScopeNo
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Mounting Supportpanel
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Thermal Overload Typemelting alloy
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Medium DescOverload Relay, Type S, melting alloy, separate mount overload, NEMA size 00, 0, 1, 3 pole, 3 phase, 25A, 600VAC
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; United States, US
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; United States, US
Global Commercial StatusCommercialised
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI1312002EN
- EU ROHS Directive
- Not compliant
- Packaging Made With Recycled Cardboard
- Yes
- Pep Code
- ENVPEP1312002EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Carbon Footprint12.880936278701714
Environmental DisclosureENVPEP1312002EN
Nema Size1
Packaging Without Single Use PlasticNo
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Range Of Product
- Separate Mounting
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 100.8 mm
