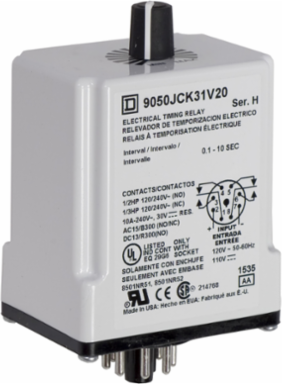

Square D 9050JCK31V20 Timing Relay JCK Plug-In, DPDT, 0.1-10 Sec Delay, 10A, 240V AC

9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer has an interval timing mode. When the input voltage is applied to the timer, the timer relay contacts change state immediately and the timing cycle begins. When the time delay is complete, or when the input voltage is removed, contacts return to shelf state. The timing range of 0.1 to 10 seconds is easily adjustable with a knob on the top of the timer. This plug in timer plugs into an 8501NR51 or 8501NR52 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 120 VAC / 110 VDC. This plug in timing relay is 2.40 inches tall, 1.69 inches wide and 4.09 inches deep. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.
