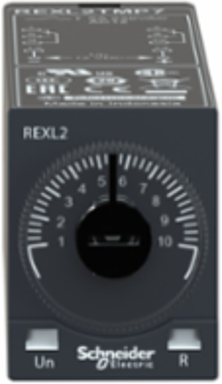

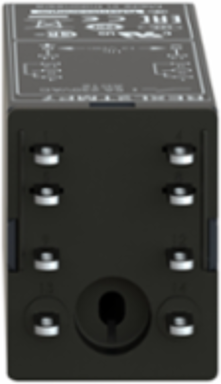

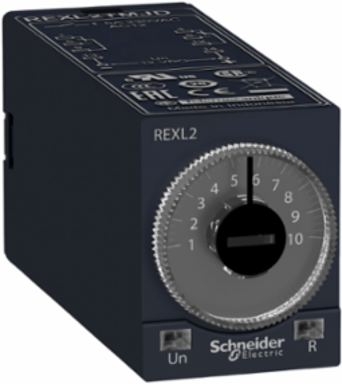

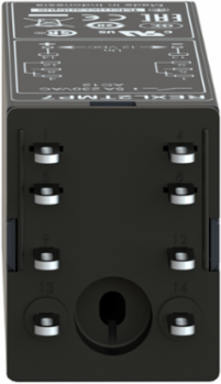

Schneider Electric REXL2TMF7 Harmony Timer Relay, 5A 2CO, 0.1s-100h Delay, 120V AC
- MPN: REXL2TMF7
- PPN: SCH-REXL2TMF7
CAD
$69.85
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

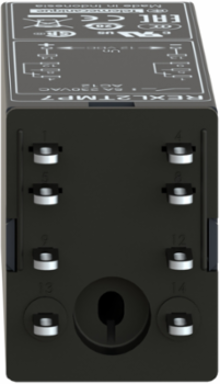

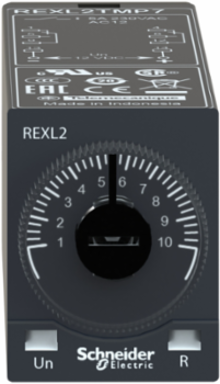

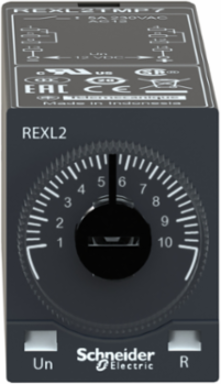

"This Harmony REXL timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 5A, is 21mm wide and can be supplied with 120V AC." "It is a plug-in device, meaning it is quick and easy to install with the need for tools." "It also offers a sealable cover, simple and precise settings with rotary trimmers." "It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time." "Status display with 2 LEDs, visually inspect the status of you system without specialized tools." 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, United States
Complementary Attributes
- Line Rated Current
- AC, 5 A
- Minimum Switching Current
- 100 mA
Maximum Switching Capacity4 x 5 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- without test button, without test button
- Immunity To Voltage Dips
- >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-1130 % / 10 ms IEC 61000-4-1160 % / 100 ms IEC 61000-4-11

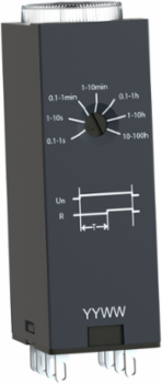

- Time Delay Range
- 10...100 h, 6...60 s, 6...60 min, 1...10 min, 0.1...1 s, 1...10 s, 1...10 h
- Voltage Drift
- +/- 0.2 %/V, +/- 0.2 %/V
- Certificate Agency
- cUL, UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.006451063, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0006360467
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 89 kg CO2 eq., 89.2724444444
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Material
- cadmium free
- Creepage Distance
- 4 kV/3 IEC 60664-1
- Fixing Mode
- plug-in (socket)
- Functionality
- on-delay timing
- Immunity To Radioelectric Fields
- 10 V 0.15...80 MHz)IEC 61000-4-6 level 3
- Mechanical Durability
- 10000000 cycles
- Power Consumption In Va
- 2.6 VA
- Product Or Component Type
- miniature timing relay
- Reset Time
- 250 ms after time delay, on de-energisation50 ms during time delay, on de-energisation
- Resistance To Electrostatic Discharge
- 6 kV in contact IEC 61000-4-2 level 38 kV in air IEC 61000-4-2 level 3
- Returnability
- Yes
- Shape Of Pin
- flat
- Sustainable Packaging
- Yes
- Temporary Permissible Current
- 10 A < 10 s
- Vibration Resistance
- 0.35 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
- Supply Voltage Num 3
- 120 V AC 50/60 Hz
- Database Version
- 2017-03
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To time events in industrial automation systems by closing or opening contacts before, during, or after a set timing period. during 20 years with a 30% use rate, in compliance with French standards
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 182.208
- Energy Model - Installation [A5]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; <lt/> 1kV; EU-27

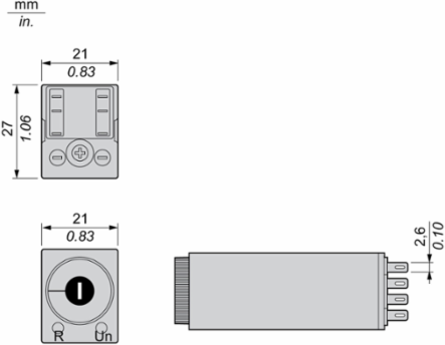

- Width Nominal
- 21 mm
- [Us] Rated Supply Voltage
- 120 V AC 50/60 Hz
- Disturbance Radiated/Conducted
- class B EN 55022 (EN 55011 group 1)
- Package Weight(Lbs)
- 48.000 g
- Warranty (In Months)
- 18
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 226.72
- Customs Code
- 8536490065
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Dielectric Strength2 kV 1 mA/1 minute 50 Hz IEC 60601-1, 2 kV 1 mA/1 minute 50 Hz IEC 61812-1
Repeat Accuracy+/- 0.5 %, +/- 0.5 %
Time Delay Type- - relay, A, power on-delay

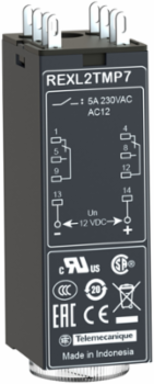

Contacts Composition2 C/O
[Ui] Rated Insulation Voltage250 V IEC 255 Group C, 250 V VDE 0010
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0063509864, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.6 kg CO2 eq., 0.5677264892
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Component NameREXL
Contacts Type And Composition2 C/O
Electrical Durability100000 cycles 250 V AC resistive
Function AvailableA- Power on-delay relay-2 C/O
Immunity To Microbreaks5 ms
Local Signalling1 LED (red) for output in operation1 LED (yellow) for power ON
Number Of Functions1
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Timer Relays
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3 level 3
Resistance To Fast Transients2 kV IEC 61000-4-4 level 3
Setting Accuracy Of Time Delay10 % at full scale 25 °C IEC 61812-1
Software VersionEIME v5.6
Temperature Drift0.05 %/°C
Total Lifecycle Carbon Footprint90 kg CO2 eq.
Voltage Range0.85...1.15 Us
Pep CodeENVPEP1310019EN
Pep Verification Date2017-06-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %28
[Uc] Control Circuit Voltage120 V
Connections - Terminalsscrew connectors
Nbr. Of Units In Pkg.1
Take-backNo
Net Use Of Fresh Water (M3) Operational Energy Use [B6]323.7
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]226.72
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 89.8536090298
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1310019EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1310019EN
Ip Degree Of ProtectionIP50 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % without condensation IEC 60068-2-6
Pep Verification Date2017-06-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- miniature timing relay
Range Of ProductHarmony Timer Relays
ETIM
- ETIM 8
- EC001439
ETIM 9EC001439
Output Attributes
- Discrete Output Type
- relay
- Output Type
- relay
Output Overvoltage Protection2 J
Surge Protection And Filtering Attributes
- Surge Withstand
- 2 kV IEC 61000-4-5 level 3
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
