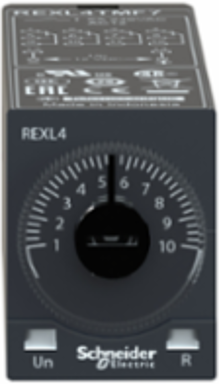

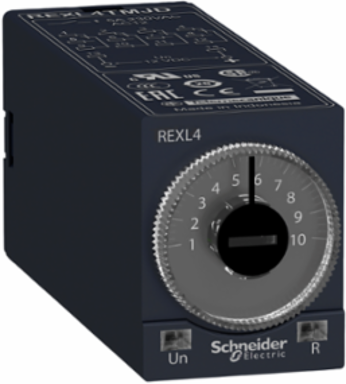

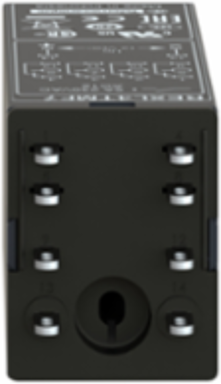

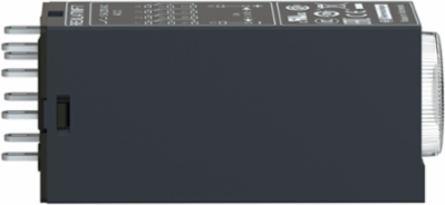

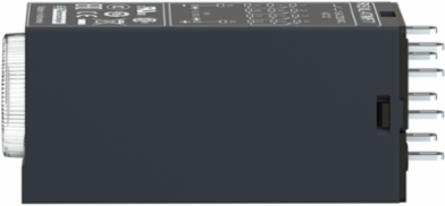

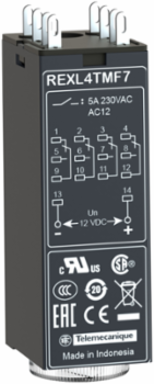

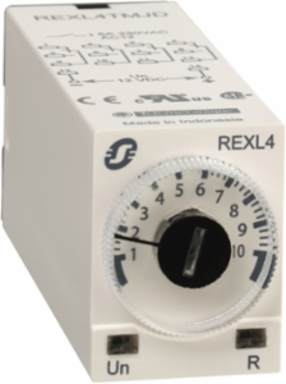

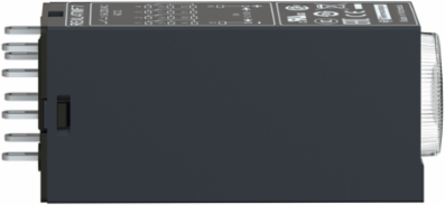

Schneider Electric REXL4TMF7 Harmony Timer Relay 5A 4CO 120V AC 0.1s-100h On Delay
- MPN: REXL4TMF7
- PPN: SCH-REXL4TMF7
CAD
$78.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

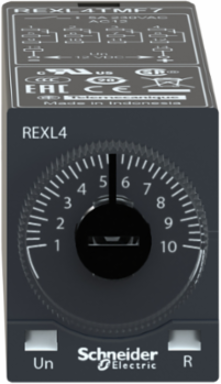

This Harmony REXL timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 5A, is 48mm wide and can be supplied with 120V AC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Features
- The Schneider Electric REXL4TMF7 features a flexible Power On-Delay (Function A) function that is easily configured from 0.1 seconds up to 100 hours via precise front-facing rotary trimmers. This exceptionally wide timing scale allows industrial control technicians to standardize on a single component for varied automation, machine building, and HVAC staging sequences, significantly reducing spare-part inventory costs.
- Engineered for seamless drop-in integration, this miniature timing relay operates on a standard 120V AC (50/60 Hz) power supply and features a high-density 4 C/O (4PDT) contact arrangement rated at 5A. This multi-channel configuration allows you to safely switch up to four independent downstream circuits simultaneously from a single compact footprint, saving valuable DIN rail space in your enclosure.
- The unit features integrated dual-LED local signaling a yellow LED indicating power is supplied to the coil and a red LED confirming that the time-delay cycle has completed and the output is active. These high-visibility indicators allow automation engineers to perform quick, line-of-sight troubleshooting and diagnostic checks without opening live circuits or using specialized testing equipment.
- Constructed with environmentally conscious cadmium-free contacts, an IP50-rated housing, and 2 kV surge withstand capabilities, this relay is rated for 100,000 electrical cycles and up to 10,000,000 mechanical operations. It fully complies with stringent IEC 61812-1, UL, and cUL safety standards, ensuring long-term operational reliability and absolute compliance with Canadian industrial electrical codes.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, Mexico, United States
Complementary Attributes
- Line Rated Current
- 5 A AC, 5 A
- Minimum Switching Current
- 100 mA
Maximum Switching Capacity4 x 5 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- without test button, without test button
- Immunity To Voltage Dips
- >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, >= 95 % / 1 s IEC 61000-4-11, 30 % / 10 ms IEC 61000-4-11, 60 % / 100 ms IEC 61000-4-11
- Repeat Accuracy
- +/- 0.5 %, +/- 0.5 %
- Resistance To Electrostatic Discharge
- 6 kV in contact IEC 61000-4-2 level 3, 8 kV in air IEC 61000-4-2 level 3
- Time Delay Type
- power on-delay - A- Power on-delay relay, A, power on-delay
- Contacts Composition
- 4 C/O
- [Ui] Rated Insulation Voltage
- 250 V IEC 255 Group C, 250 V VDE 0010
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0067320456
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.6 kg CO2 eq., 0.6017900785
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 53.98
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Component Name
- REXL
- Contacts Type And Composition
- 4 C/O
- Electrical Durability
- 100000 cycles 250 V AC resistive
- Function Available
- A- Power on-delay relay-4 C/O
- Immunity To Microbreaks
- 5 ms
- Mechanical Durability
- 10000000 cycles
- Power Consumption In Va
- 2.6 VA
- Product Or Component Type
- miniature timing relay
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3 level 3
- Returnability
- Yes

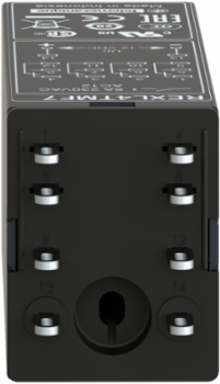

- Shape Of Pin
- flat
- Sustainable Packaging
- Yes
- Temporary Permissible Current
- 10 A < 10 s
- Vibration Resistance
- 0.35 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
- Supply Voltage Num 3
- 120 V AC 50/60 Hz
- Database Version
- 2017-03
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To time events in industrial automation systems by closing or opening contacts before, during, or after a set timing period. during 20 years with a 30% use rate, in compliance with French standards
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime, In Kwh
- 182.208
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- [Uc] Control Circuit Voltage
- 120 V
- Connections - Terminals
- screw connectors
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Net Use Of Fresh Water (M3) Operational Energy Use [B6]
- 323.7
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 226.72
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Dielectric Strength2 kV 1 mA/1 minute 50 Hz IEC 60601-1, 2 kV 1 mA/1 minute 50 Hz IEC 61812-1
Local Signalling1 LED (red) for output in operation, 1 LED (yellow) for power ON
Reset Time250 ms after time delay, on de-energisation, 50 ms during time delay, on de-energisation

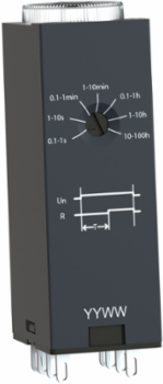

Time Delay Range1...10 min, 10...100 h, 6...60 s, 0.1...1 s, 1...10 h, 6...60 min, 1...10 s
Voltage Drift+/- 0.2 %/V, +/- 0.2 %/V
Certificate AgencycUL, UL
Carbon Footprint Of The Distribution Phase [A4]0.0068381268, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0006742095, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]89 kg CO2 eq., 89.2724444444
Local Publishable Date2026-03-26
Future Imap48.37
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Materialcadmium free
Creepage Distance4 kV/3 IEC 60664-1
Fixing Modeplug-in (socket)
Functionalityon-delay timing
Immunity To Radioelectric Fields10 V 0.15...80 MHz)IEC 61000-4-6 level 3
Number Of Functions1
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Timer Relays
Resistance To Fast Transients2 kV IEC 61000-4-4 level 3
Setting Accuracy Of Time Delay10 % at full scale 25 °C IEC 61812-1
Software VersionEIME v5.6
Temperature Drift0.05 %/°C
Total Lifecycle Carbon Footprint90 kg CO2 eq.
Voltage Range0.85...1.15 Us
Pep CodeENVPEP1310019EN
Pep Verification Date2017-06-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27

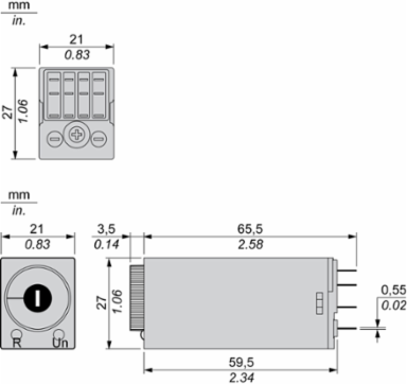

Width Nominal21 mm
[Us] Rated Supply Voltage120 V AC 50/60 Hz
Disturbance Radiated/Conductedclass B EN 55022 (EN 55011 group 1)
Package Weight(Lbs)50.000 g
Warranty (In Months)18
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]226.72
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 89.8884789049
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1310019EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1310019EN
Ip Degree Of ProtectionIP50 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % without condensation IEC 60068-2-6
Pep Verification Date2017-06-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- miniature timing relay
Range Of ProductHarmony Timer Relays
ETIM
- ETIM 8
- EC001439
ETIM 9EC001439
Output Attributes
- Discrete Output Type
- relay
- Output Type
- relay
Output Overvoltage Protection2 J
Surge Protection And Filtering Attributes
- Surge Withstand
- 2 kV IEC 61000-4-5 level 3
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
