Schneider Electric NSYTBCN3105 Top busbar chamber, PanelSeT SFN, for electrical enclosure W1000 D500mm, IP55

MPN: NSYTBCN3105
PPN: SCH-NSYTBCN3105
UNSPSC: 39121117

$1513.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

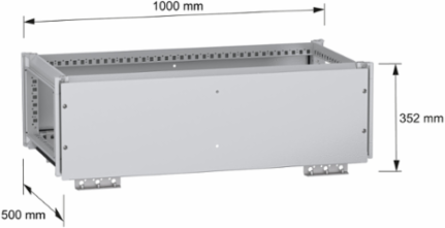

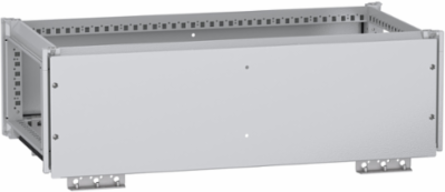

This Top Bus Chamber is a power distribution accessory to be assembled on top of the PanelSeT SFN floor standing modular decarbonized steel electrical enclosure. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. It has a nominal height, width, and depth of 300 mm, 1000 mm and 500 mm, respectively. The frame and uprights of the chamber are made of galvanized steel for durability. The panels are made of steel sheet. An epoxy-polyester powder finish provides a smooth appearance. The chamber has a grey (RAL 7035) color with a black (RAL 9005) handle. It comes with one sealing gasket, front and back panels and four eyebolts. The chamber has an IP55 rating, which makes it resistant to dust, water and oil ingress. The enclosure is also resistant to impacts, with an IK10 rating. Operation is convenient due to rear, front, and side access.

Features

Sustainable design that contains recycled steel manufactured with renewable energy to face environmental challenges.
Large choice of dimensions & accessories to simplify mounting and installation of electrical equipment.
Ergonomic design for convenience & time-saving operations.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France
Width	39.37 in
Depth	500 mm

Height	11.85 in
Weight	30000 g

Physical Attributes

Color	Gray RAL 7035)

Important Information Attributes

Device Composition	1 busbar chamber, 1 sealing gasket2 front panel
Carbon Footprint Of The Distribution Phase A4	5.688522483, 6 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	8.053584059, 8 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-02-24
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Product Kit Identifier	N
Energy Efficiency Optimized	False
Mounting Location	on top of enclosure
Product Or Component Type	top busbar chamber
Range	PanelSeT
Software Version	v5.9.4
Sustainable Packaging	No
Database Version	2022-01
Height Nominal	301 mm
Width Nominal	1000 mm
Accessory / Separate Part Category	power distribution
Customs Code	7326908688
Functional Unit Description	Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
Functional Unit Unit	unit
Recyclability Potential In %	97

Enclosure Nominal Dimensions	- W: 1000 mm D: 500 mm, - W: 1000 mm D: 500 mm, - W: 1000 mm D: 500 mm, - W: 1000 mm D: 500 mm, - W: 1000 mm D: 500 mm, - W: 1000 mm D: 500 mm
Carbon Footprint Of The End Of Life Phase C1 To C4	68 kg CO2 eq., 67.95418239
Carbon Footprint Of The Manufacturing Phase A1 To A3	77 kg CO2 eq., 77.16266752
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2507020EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2306
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Device Application	multi-purpose
Material	steel
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	Yes
Surface Finish	epoxy-polyester powder
Total Lifecycle Carbon Footprint	159 kg CO2 eq.
Data Source	extrapolated product
Height Useful	301 mm
Width Real	1000 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	158.8589565
Environmental Disclosure	ENVPEP2301018EN
Ip Degree Of Protection	IP55 IEC 60529
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2301018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2507020EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-07-31
Psr Version	PSR-0005-ed2-2016 03 29
