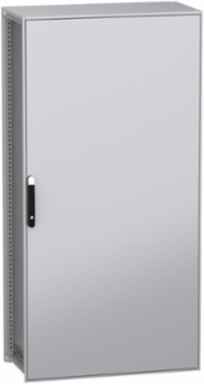

Schneider Electric NSYSFN201050 PanelSeT SFN Floor Standing Electrical Enclosure 2000x1000x500mm IP55

MPN: NSYSFN201050
PPN: SCH-NSYSFN201050
UNSPSC: 39121324

$3505.20

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered for robust security and performance, the Schneider Electric NSYSFN201050 PanelSeT SFN is a floor-standing electrical enclosure designed with a protective IP55 rating, ensuring superior resistance to dust and water ingress. With its spacious dimensions of 2000x1000x500mm, this enclosure provides ample room for housing critical electrical components, making it an ideal choice for various industrial applications. Its durable construction not only guarantees longevity but also facilitates effective organization and accessibility for maintenance and operation, positioning it as a reliable solution for safeguarding electrical systems in demanding environments.

Features

Sustainable design that contains recycled steel manufactured with renewable energy to face environmental challenges.
IEC and UL compliant making it sturdy, robust, and durable for maximum component protection.
Available in mounted, kit, and customized versions to optimize your configurations coping with specific needs.
Ergonomic design for convenience & time-saving operations.
Large choice of dimensions & accessories to simplify mounting and installation of electrical equipment.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain

Weight	111100 g

Physical Attributes

Color	enclosure Gray RAL 7035), handle Black RAL 9005)

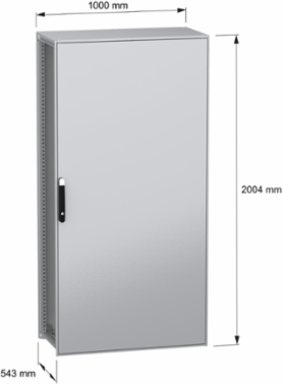

Enclosure Nominal Width	1000 mm

Enclosure Nominal Height	2000 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL

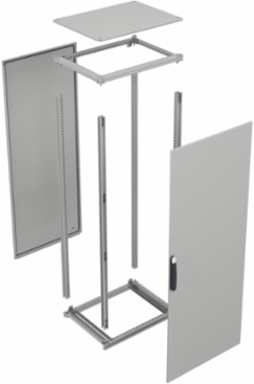

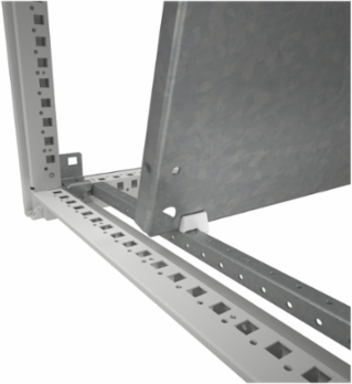

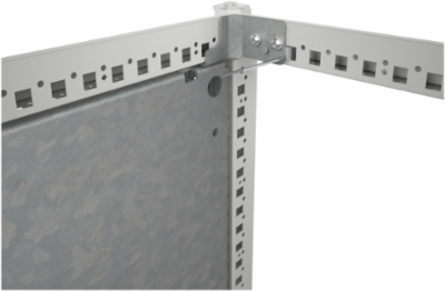

Device Composition	2 sliding rails4 mounting plate quick-fixing brackets1 structure, 1 door1 locking system with handle door, 1 rear panel, 1 roof

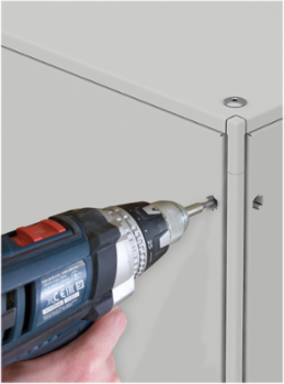

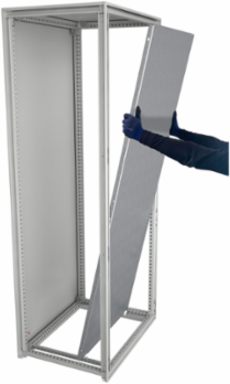

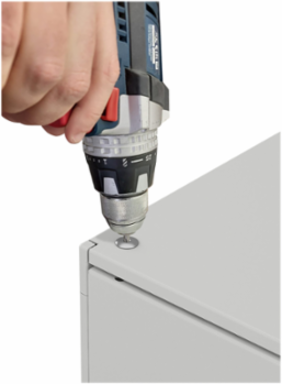

Removable Parts	door by screws hinge, rear panel by screws, roof by screws, mounting plate bracket by screws, sliding rail by screws
Certificate Agency	IEC 62208, UL, cUL
Carbon Footprint Of The End Of Life Phase C1 To C4	252 kg CO2 eq., 251.6569888
Carbon Footprint Of The Manufacturing Phase A1 To A3	286 kg CO2 eq., 285.7590787
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2507020EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2306
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Average Percentage Of Recycled Metal Content	45 %
Door Opening Side	reversible 120 °)
Enclosure Mounting	floor-standing
Lock Type	4 points lock, handle with 5 mm double bar insert front door
Number Of Doors	front 1
Product Name	PanelSeT SFN
Range	PanelSeT
Software Version	v5.9.4
Sustainable Packaging	No
Type Of Gland Plate	without gland plate
Data Source	extrapolated product
Customs Code	9403200090
Functional Unit Description	Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
Functional Unit Unit	unit
Recyclability Potential In %	97

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Material	frame galvanised steel, uprights galvanised steeldoor sheet steel, panels sheet steelhinge zamakhandle polyamide 6 with 30 % fibre glass

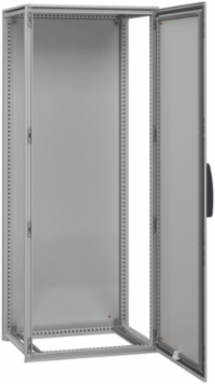

Structure Type	formed from a single section, panels and doors built into the structure, perforated structure with a pitch of 25 mm, vertical uprights joined with top and bottom frames
Carbon Footprint Of The Distribution Phase A4	21.06649493, 21 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	29.8251063, 30 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2025-11-15
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	multi-purpose
Door Type	Solid front
Energy Efficiency Optimized	False
Mounting Plate Description	without mounting plate
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	suitable enclosure
Returnability	No
Surface Finish	epoxy-polyester powder
Total Lifecycle Carbon Footprint	588 kg CO2 eq.
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	588.3076687
Environmental Disclosure	ENVPEP2301018EN
Ip Degree Of Protection	IP55 IEC 60529
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-07-31
Psr Version	PSR-0005-ed2-2016 03 29

Recycled Metal Content At Cr Level	45 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2507020EN
Eu Rohs Directive	Compliant By Exemption
Nema Degree Of Protection	NEMA 3R/12
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2301018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
