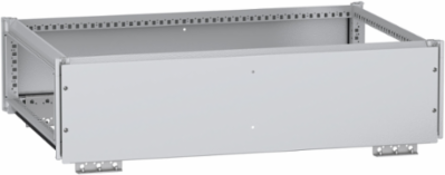

Schneider Electric NSYTBCN3128 Top busbar chamber, PanelSeT SFN, for electrical enclosure W1200 D800mm, IP55
- MPN: NSYTBCN3128
- PPN: SCH-NSYTBCN3128
CAD
$1618.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Top Bus Chamber is a power distribution accessory to be assembled on top of the PanelSeT SFN floor standing modular decarbonized steel electrical enclosure. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. It has a nominal height, width, and depth of 300 mm, 1200 mm and 800 mm, respectively. The frame and uprights of the chamber are made of galvanized steel for durability. The panels are made of steel sheet. An epoxy-polyester powder finish provides a smooth appearance. The chamber has a grey (RAL 7035) color with a black (RAL 9005) handle. It comes with one sealing gasket, front and back panels and four eyebolts. The chamber has an IP55 rating, which makes it resistant to dust, water and oil ingress. The enclosure is also resistant to impacts, with an IK10 rating. Operation is convenient due to rear, front, and side access.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France

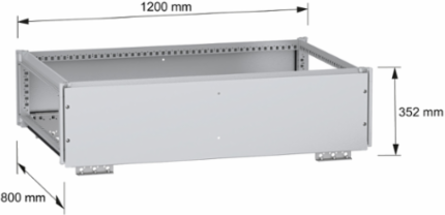

- Width
- 47.24 in
Height11.85 in
Depth800 mm
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Device Composition
- 1 busbar chamber, 1 sealing gasket2 front panel
- Carbon Footprint Of The Distribution Phase [A4]
- 4.930052819, 5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 6.979772851, 7 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-02-24
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Mounting Location
- on top of enclosure
- Product Or Component Type
- top busbar chamber
- Range
- PanelSeT
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2301018EN
- Pep Verification Date
- 2023-07-31
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 301 mm
- Width Nominal
- 1200 mm
- Accessory / Separate Part Category
- power distribution
- Package Weight(Lbs)
- 28.500 kg
- Warranty (In Months)
- 18
- Customs Code
- 7326908688
Enclosure Nominal Dimensions- W: 1200 mm D: 800 mm, - W: 1200 mm D: 800 mm, - W: 1200 mm D: 800 mm, - W: 1200 mm D: 800 mm, - W: 1200 mm D: 800 mm, - W: 1200 mm D: 800 mm
Carbon Footprint Of The End-of-life Phase [C1 To C4]59 kg CO2 eq., 58.89362474
Carbon Footprint Of The Manufacturing Phase [A1 To A3]67 kg CO2 eq., 66.87431185
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2507020EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2306
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Device Applicationmulti-purpose
Materialsteel
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityYes
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint138 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %97
Height Useful301 mm
Width Real1200 mm
Nbr. Of Units In Pkg.1
Take-backNo
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-16438.2554
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 137.6777623
- Environmental Disclosure
- ENVPEP2301018EN
- Ip Degree Of Protection
- IP55 IEC 60529
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2301018EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2507020EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-07-31
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- top busbar chamber
ETIM
- ETIM 8
- EC002530
ETIM 9EC002530
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
