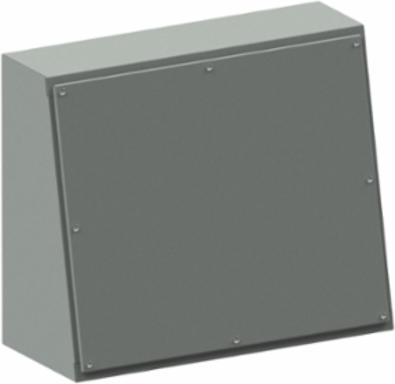

Wiegmann WC1224T Top For WC1224B Carbon Steel - Gray
Wiegmann WC1224T Top For WC1224B Carbon Steel - Gray
- MPN: WC1224T
- UPC: 786725443345
- PPN: HBL-WC1224T
- UNSPSC: 39121323
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1887.29/ EA
Description
Top For WC1224B Carbon Steel - Gray
Features
- Fabricated from carbon steel
- Seams are continuously welded and ground smooth
- Closed cell neoprene gasket is included
- Fabricated from 14 gauge steel. Tops have a sloped front surface. Seams are continuously welded and ground smooth. Instrument and access panels have captive screws which thread into sealed well. 4 holes are provided in bottom of top for mounting to body. Closed cell neoprene gasket. Instrument panels and access panels are removable.
Specifications
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
Specifications
- Country of Origin
- Mexico
- Actual Height
- 6.120 in
- Application
- For use with WC1224B console.
- Cover Type
- Screw
- Depth
- 20 in
- Height
- 6 in
- NEMA Rating
- 12
- Standard
- cULus
- Width
- 24 in
- Finish Type
- Polyester Powder
- Nema Rating
- 12
- Class Code
- P02
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P02P036
- Construction
- Continuously Welded Seams
- Series
- WC12 Series
- BOX SIZE
- 6.120x20.130x24.130 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725443345
Actual Depth20.13 in
Actual Width24.13 in
ColorAnsi-61 Gray Textured
Cubic Capacity2880 cu.in
FinishPolyester Powder
MountingMounting Holes
Special FeaturesFabricated from 14 gauge steel. Tops have a sloped front surface. Seams are continuously welded and ground smooth. Instrument and access panels have captive screws which thread into sealed well. 4 holes are provided in bottom of top for mounting to body. Closed cell neoprene gasket. Instrument panels and access panels are removable.
TypeConsole Top
Weight43 lb.
Mounting TypeMounting Holes
ARRA CompliantContact Manufacturer
Description - InvoiceCONSOLE,OT,CS,TOP ONLY
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack43.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
