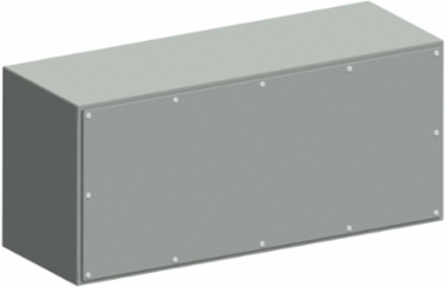

Wiegmann WC1436T Top For WC1436B Carbon Steel - Gray
- MPN: WC1436T
- UPC: 786725444052
- PPN: HBL-WC1436T
- UNSPSC: 39121323
CAD
$2734.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Top For WC1436B Carbon Steel - Gray
Features
- Fabricated from 14 gauge steel. Top unit is 12.5" deep to accommodate most instruments. Seams are continuously welded and ground smooth, less knockouts or holes. Instrument and access panels have captivated screws which thread into sealed wells. 4 holes are provided in bottom of top for mounting to body. Instrument and access panels are removable. Closed cell neoprene gasket.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Height
- 12.630 in
- Application
- For use with WC1436B console.
- Cover Type
- Screw
- Depth
- 16 in
- Height
- 13 in
- NEMA Rating
- 12
- Type
- Console Top
- Weight
- 62 lb.
- Mounting Type
- Mounting Holes
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- CONSOLE,OT,CS,TOP ONLY
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 62.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
Actual Depth16.13 in
Actual Width36.13 in
ColorAnsi-61 Gray Textured
Cubic Capacity7488 cu.in
FinishPolyester Powder
MountingMounting Holes
StandardcULus
Width36 in
Finish TypePolyester Powder
Nema Rating12
Class CodeP02
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP02P036
ConstructionContinuously Welded Seams
SeriesWC14 Series
BOX SIZE12.630x16.130x36.130 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725444052
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- Listings
- UL, CSA
Certified ListedcULus
