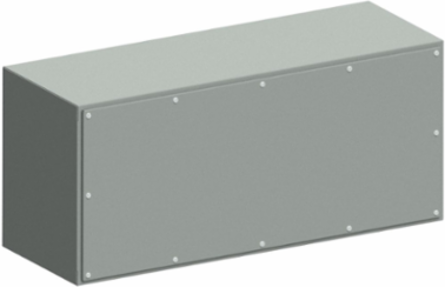

Wiegmann WC1448T Top For WC1448B Carbon Steel - Gray
- MPN: WC1448T
- UPC: 786725444359
- PPN: HBL-WC1448T
- UNSPSC: 39121323
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Top For WC1448B Carbon Steel - Gray
Features
- Fabricated from 14 gauge steel. Top unit is 12.5" deep to accommodate most instruments. Seams are continuously welded and ground smooth, less knockouts or holes. Instrument and access panels have captivated screws which thread into sealed wells. 4 holes are provided in bottom of top for mounting to body. Instrument and access panels are removable. Closed cell neoprene gasket.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Actual Height | 12.630 in |
| Application | For use with WC1448BD console. |
| Cover Type | Screw |
| Depth | 16 in |
| Height | 13 in |
| NEMA Rating | 12 |
| Type | Console Top |
| Weight | 79 lb. |
| Mounting Type | Mounting Holes |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | CONSOLE,OT,CS,TOP ONLY |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Buy America(n) Qualified | Contact Manufacturer |
| Construction | Continuously Welded Seams |
| Series | WC14 Series |
| BOX SIZE | 12.630x16.130x48.130 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725444359 |
| NAICS Code | 3359326101 |
| Actual Depth | 16.13 in |
|---|---|
| Actual Width | 48.13 in |
| Color | Ansi-61 Gray Textured |
| Cubic Capacity | 9984 cu.in |
| Finish | Polyester Powder |
| Mounting | Mounting Holes |
| Standard | cULus |
| Width | 48 in |
| Finish Type | Polyester Powder |
| Nema Rating | 12 |
| Class Code | P02 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P02P036 |
| UL Listed | Yes |
| Material | Carbon Steel |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 79.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
