Bryant

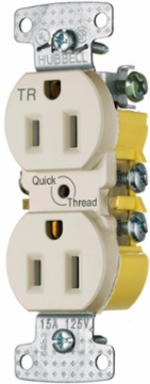

Bryant RR15QLATR Residential Tamper Resistant Duplex Receptacle 15A 125V 2-Pole 3-Wire Grounding

Residential Tamper Resistant Duplex Receptacle 15A 125V 2-Pole 3-Wire Grounding
  • MPN: RR15QLATR
  • UPC: 883778301605
  • PPN: HBL-RR15QLATR
  • UNSPSC: 39121406

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4.03/ EA

Description

tradeSELECT® Straight Blade Receptacle, Residential Grade, Tamper Resistant Duplex, Quick Thread, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R

Features

  • Smooth indented face appearance
  • Tough thermoplastic ultrasonically welded cover and base
  • Elongated strap with continuous plaster ears to secure device
  • Tamper Resistant- Self Grounding, Quick Thread

Specifications

Specifications

Country of Origin
China
Width
1.570 in
Performance
Environmental - Operating temperature - -20°C to 60°C;Mechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only
Application
Residential Receptacles
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Number of Poles
2-Pole
Phase
Single Phase
Standard
CSA Certified;UL Listed E2186
Wattage
1875
Voltage Rating Description
125 VAC
Connectivity
Push and Side Wire
Nema Rating
5-15R
Number Of Wires
3-Wire Grounding
Freight Class Code
06168002
Image Actual Or Representative
A
Replaced Catalog Number
RR15QLA
Current Rating
15 A
Base Unit of Measure
EA
Carton - Gross Weight per Pack
2.350 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Case Weight
29.550 lb.
Lowest Level UOM
Each
Current / Amperage Rating15 A
Industry Standard(s)CSA Certified;UL Listed E2186
Amperage Rating15 A
ColorLight Almond
NEMA Rating5-15R
Number of Wires3-Wire Grounding
Special FeaturesTamper Resistant- Self Grounding, Quick Thread
Voltage Rating125 VAC
Wire Size#14 AWG to #12 AWG
General Literature Asset 1 Display TextGeneral Literature - Tamper-Resistant and Weather Resistant Receptacles
Display SizeStandard Sized Product
Number Of Poles2-Pole
Description - InvoiceRCPT, DUP, TR, 15A 125V, QCK-PLT, LA
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
BOX SIZE2.300x8.000x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack883778301605
Case - Total Units200 EA
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
Yes
