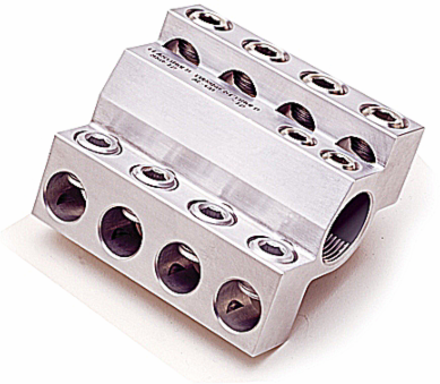

Homac TWB6359SD58 Transformer Connector - TWB Series

MPN: TWB6359SD58
PPN: T-B-TWB6359SD58

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$79.90/ EA

Qty:

Loading add to cart quantity...

Description

Aluminum Transformer Stud Connector Quick Disconnect - 350 Series, Ports 6, Cable Range #12 - 350 kcmil, Stud Size 5/8 inch, Street Light Option

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121443 Electrical underground bus connector

Brand Name: Homac

Special Features: High-Strength Aluminum Alloy Maintains Constant Bolting Pressure on Conductors. Dual-Rated to Accept Aluminum or Copper Conductors. Prefilled with Oxide Inhibitor to Seal out Moisture after Installation. Compact Design Doubles Cable Capacity and Halves Cantilever Stress. Street Light Option

Standard: ANSI C119.4

Conductor Range: #12-350kcmil

IGCC4663 Electrical underground bus connector

TypeTransformer Connector - TWB Series

ApplicationStud-Mount Transformer Connector, Quick Disconnect

Sizeheight 3.1 inch, 78 mm, width 2.6 inch, 66 mm, length 2.6 inch, 66 mm

MaterialAluminum

Packaging

Outer Quantity: 12

Weight Uom: 1 lbs. Each

Outer Dimensions (inches)1x1x1
