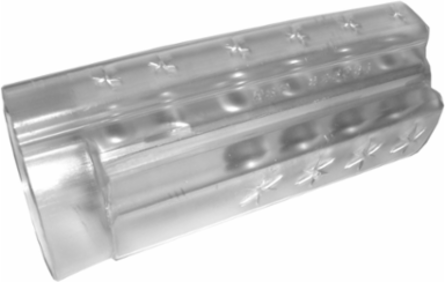

CMC RLS350-6I Stud-mount transformer connectors, allows left or right-hand mounting, insulated stud-mount connectors
- MPN: RLS350-6I
- UPC: 192663084227
- PPN: HBL-C58701264I
CAD
$116.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Stud-mount transformer connectors, allows left or right-hand mounting, Dual rated connectors for Aluminum or Copper conductors, Insulated Stud-Mount Connectors
Features
- Clear plated for low-contact resistance.
- Fully tested to ANSI C119.4 for Class ‘A’ connectors.
- Supplied with radial-tipped set-screws.
- Offers fast, economical, reusable, and dependable connections for right or left hand installations.
- Connector fabricated from 6061-T6 aluminum alloy for conductivity and strength.
- Includes CO-OX oxide inhibitor in all conductor holes and stud-mounting hole.
- Each unit individually wrapped and labeled for ease of identification and cleanliness.
- For installation, CMC® recommends the use of a 9” insulated Allen wrench.
- A torque wrench should be used to ensure the proper torque is achieved.
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 2.26 in
- Voltage Rating
- 600 V
- Conductor Range
- 350 Kcmil - #12 AWG
- Class Code
- C02
- Harmonization Code
- 8536904000
- Sub Class Code
- C02C203
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00192663084227
- Package - GTIN - Package
- 30192663084228
- Package Weight
- 1.149 lb.
Dimensions7.79 in x 2.5 in x 2.26 in
Length7.79 in
Width2.5 in
Number Of Conductors6
Freight Class Code06120000
Image Actual Or RepresentativeA
MaterialAluminum Alloy, 6061-T6
BOX SIZE(in)
Case - SCC-14 Next Lower Level Sub Pack30192663084228
Package Quantity12 EA
NAICS Code335931
Certifications
- CSA Approved
- No
- RUS Listed Reference
- Yes
UL RecognizedNo
