Square D

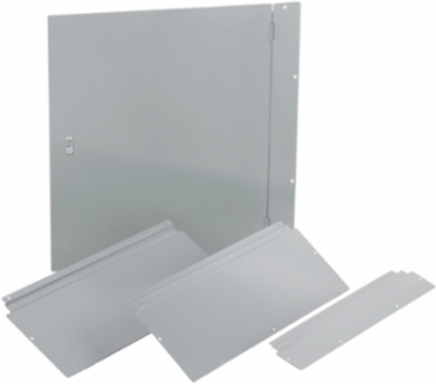

Square D HCM48TSD I-Line Panelboard Trim, 32 Inch W x 48 Inch H, Surface Mount, 21.77 kg

I-Line Panelboard Trim, 32 Inch W x 48 Inch H, Surface Mount, 21.77 kg
I-Line Panelboard Trim, 32 Inch W x 48 Inch H, Surface Mount, 21.77 kg
I-Line Panelboard Trim, 32 Inch W x 48 Inch H, Surface Mount, 21.77 kg
I-Line Panelboard Trim, 32 Inch W x 48 Inch H, Surface Mount, 21.77 kg
I-Line Panelboard Trim, 32 Inch W x 48 Inch H, Surface Mount, 21.77 kg
  • MPN: HCM48TSD
  • UPC: 785901089070
  • PPN: SCH-HCM48TSD

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$437.74/ EA

Description

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCM I-Line panelboard is surface mounted and has trim. The dimesnions are 48 in (H), 32 in (W), 8.25 in (D). This product is certified to cULus & CE standards. This product comes with an 18 month warranty.

Specifications

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1407017EN
Pvc Free
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions

Complementary

Height
48 in
Product Destination
panelboard HCM 32 in 48 in 8.25 in
Net Weight
21.77 kg
Device Mountingsurface
Width32.25 in
Number Of Doors1

Specifications

Range Of Product
I-Line
Product Or Component Type
trim
Quantity Per Set4

Environment

Product Certifications
cULus || CE
