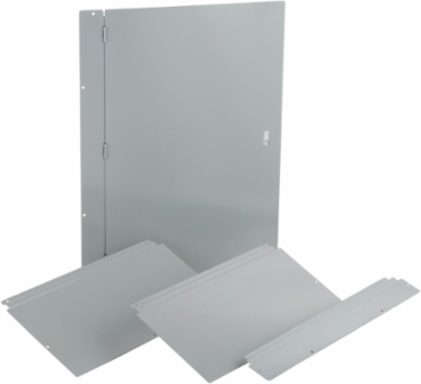

Square D HCM64TSD I-Line Panelboard Trim Front, Surface Mount, 32 Inch W x 64 Inch H
- MPN: HCM64TSD
- UPC: 785901089117
- PPN: SCH-HCM64TSD
CAD
$592.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Square D™ I-Line Power Distribution Panelboards are ideal for service entrance equipment or downstream distribution panels in the electrical system. I-line power distribution panelboards are for use on AC or DC systems. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. This trim front kit is used with HCJ I-line distrubution panelboard and surface mounted. This product is certified to cULus & CE standards. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139. This product comes with an 18 month warranty.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Important Information Attributes
- Certificate Agency
- cULus, CE
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 36 kg CO2 eq., 35.608185886461406
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 131 kg CO2 eq., 131.47726927700657
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Number Of Doors
- 1
- Product Destination
- panelboard HCM 32 in 64 in 8.25 in
- Quantity Per Set
- 4
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2509036EN
- Pep Verification Date
- 2025-10-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- [A5]
- Energy Model - End Of Life [C1-c4]
- [C1 - C4]
- Height Nominal
- 64 in
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 26.626 kg
- Take-back
- No
- Customs Code
- 8538908160
Carbon Footprint Of The Distribution Phase [A4]7.694583642588801, 8 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.03395971874371566, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-11-13
Stocking FlagN
Weee ScopeIn
Scope PerimeterOutside of Europe
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1847
China Rohs In ScopeNo
Without Single Use PlasticNo
Product Kit IdentifierN
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typetrim
Range Of ProductI-Line
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint175 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionAccommodate and protect control, command and protection devices via a panelboard cover/trim with door (2184.4 mm x 241.3 mm x 1073.15 mm) , providing protection levels IP = IP30 and IK = IK07,or a reference service life of 20 years, in commercial/industrial applications
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %97
Width Nominal32.25 in
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Halogen free product
- Mercury Free
- Yes
- Carbon Footprint
- 174.8139985248005
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Pep Code
- ENVPEP2509036EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Silicon FreeYes
Environmental DisclosureENVPEP2509036EN
Halogen Content PerformanceHalogen free product
Packaging Without Single Use PlasticNo
Pep Verification Date2025-10-15
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- trim
Range Of ProductI-Line
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
