Weidmuller 1805980000 TS 35X15/6X18 2M/ST/ZN
- MPN: 1805980000
- PPN: WDM-1805980000
CAD
$19.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

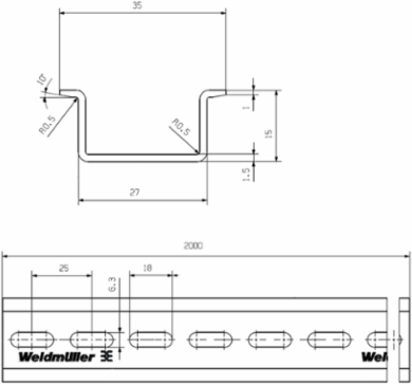

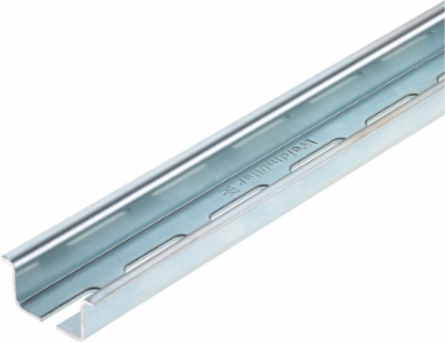

Rail, TS 35, TS 35 x 15, with slot, Steel, galvanized, chromium-plated
Documentation & Downloads
Specifications
Dimensions And Weights
- Width
- 35 mm
- Height
- 35 mm
- Depth
- 15 mm
- Net weight
- 620 g
Width (inches)1.378 inch
Height (inches)1.378 inch
Depth (inches)0.591 inch
Classifications
- ETIM 6.0
- EC001285
- eClass 9.0
- 27-40-06-02
- eClass 10.0
- 27-40-06-02
ETIM 7.0EC001285
eClass 9.127-40-06-02
Mounting Rail
- Slit gap
- 7 mm
- Slit width
- 6.3 mm
Slit length18 mm
Thickness1.5 mm
Approvals
- ROHS
- Conform
