Schmersal 101057473 Heavy-Duty Position Switch, 184mm x 111mm x 149mm, IP65, Actuation Plunger
- MPN: 101057473
- PPN: SCM-101057473
CAD
$757.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

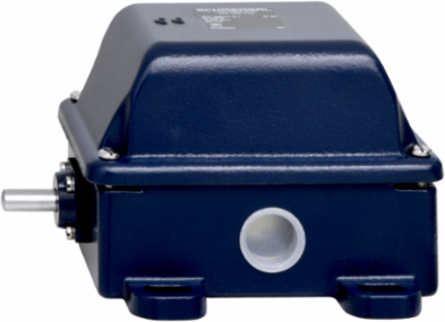

Heavy-Duty Position Switch, 184mm x 111mm x 149mm, IP65, Actuation Plunger
Features
- Metal enclosure
- 184 mm x 111 mm x 149 mm (basic component)
- 2 cable entries M 25 x 1.5
- 3 or 4 Contacts
- Actuator heads can be repositioned by 4 x 90°
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 25 A
- Utilisation category AC-15
- 25 A
- Note (Switching element)
- with double break
- Switching frequency
- 1,000 /h
Utilisation category AC-15400 VAC

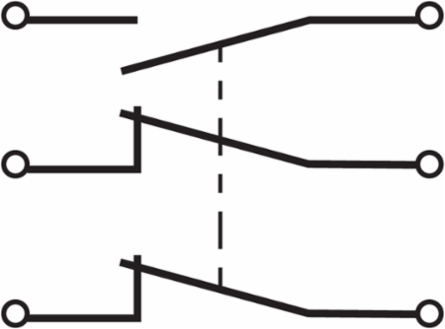

Switching elementNO contact / NC contact
Switching principleSlow action
Material of the contacts, electricalSilver
Note
- Note (General)
- Actuation from the side of the plunger should be avoided, since this reduces the mechanical life of the position switch.

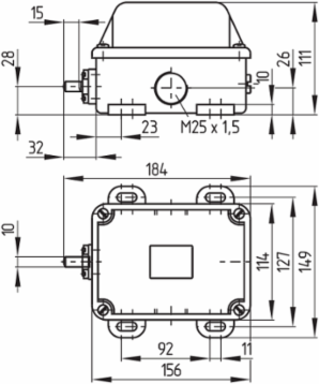

Mechanical data - Dimensions
- Length of sensor
- 149 mm
- Height of sensor
- 111 mm
Width of sensor156 mm

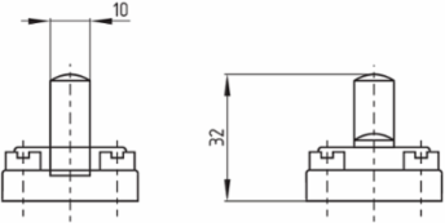

Diameter of the Plunger10 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
Rated impulse withstand voltage U6 kV
Safety classification - Safety outputs
- B
- 2,000,000 Operations
General data - Features
- Number of normally closed (NC)
- 2
Number of normally open (NO)1
General data
- Standards
- EN IEC 60947-5-1
- Slide form
- Sphere
- Enclosure coating material
- painted
Working principlemechanical
Enclosure materialGrey cast iron, galvanised
Gross weight3,240 g
Ambient conditions
- Degree of protection
- IP65
Ambient temperature-30 ... +90 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 4 mm²
- Wire cross-section
- 11 AWG
Cable section, minimum1.5 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data
- Actuating element
- Plunger
- Actuating angle
- 20 °
- Actuating speed, minimum
- 600 mm/min
- Note (Actuating speed)
- Actuating speed with vertical actuating angle to switch axis
Mechanical life, minimum1,000,000 Operations
Contact opening2 x 4 mm
Actuating speed, maximum1 m/s
Approvals - Standards
- Certificates
- cULus | CCC
