Weidmuller 8000003889 TS15X5 ST POK 0808
- MPN: 8000003889
- PPN: WDM-8000003889
CAD
$33.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

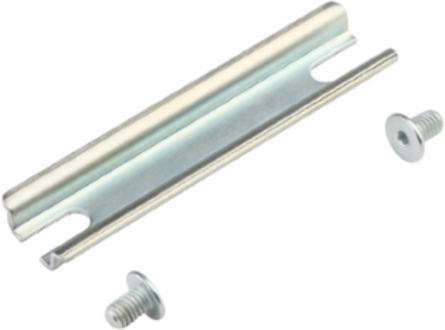

Rail, TS 15, Length: 68 mm, without slot, Steel, galvanized, chromium-plated
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
General Information On Accessories
| Material | Steel |
|---|---|
| Surface finish | galvanized, chromium-plated |
| Stamp dimensions | 4.5 x 20 mm |
|---|
Dimensions And Weights
| Length | 68 mm |
|---|---|
| Width | 15 mm |
| Height | 7.5 mm |
| Depth | 7.5 mm |
| Net weight | 15 g |
| Length (inches) | 2.677 inch |
|---|---|
| Width (inches) | 0.591 inch |
| Height (inches) | 0.295 inch |
| Depth (inches) | 0.295 inch |
Classifications
| ETIM 6.0 | EC001285 |
|---|---|
| eClass 9.0 | 27-40-06-02 |
| eClass 10.0 | 27-40-06-02 |
| ETIM 7.0 | EC001285 |
|---|---|
| eClass 9.1 | 27-40-06-02 |
General Information
| Installation advice | Direct mounting |
|---|---|
| Standards | DIN EN 60715 |
| Surface finish | galvanized, chromium-plated |
| Stamp dimensions | 4.5 x 20 mm |
|---|---|
| Material | Steel |
