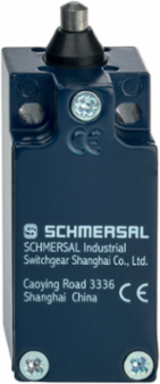

Schmersal 101165678 TS 235 Metal Enclosure with Actuator, IP65/IP67, 30 mm x 75.5 mm
- MPN: 101165678
- PPN: SCM-101165678
CAD
$91.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TS 235 Metal Enclosure with Actuator, IP65/IP67, 30 mm x 75.5 mm
Features
- 1 Cable entry M 20 x 1.5
- Metal enclosure
- Wide range of alternative actuators
- Good resistance to oil and petroleum spirit
- 30 mm x 63,5 mm x 30 mm
- Actuator heads can be repositioned by 4 x 90°
- Mounting details to EN 50047
Documentation & Downloads
Specifications
Electrical data
| Thermal test current | 10 A |
|---|---|
| Utilisation category AC-15 | 240 VAC |
| Utilisation category DC-13 | 24 VDC |
| Switching element | NO contact, NC contact |
| Switching frequency | 5,000 /h |
| Required rated short-circuit current | 1,000 A |
|---|---|
| Utilisation category AC-15 | 4 A |
| Utilisation category DC-13 | 1 A |
| Switching principle | Slow action |
| Material of the contacts, electrical | Silver |

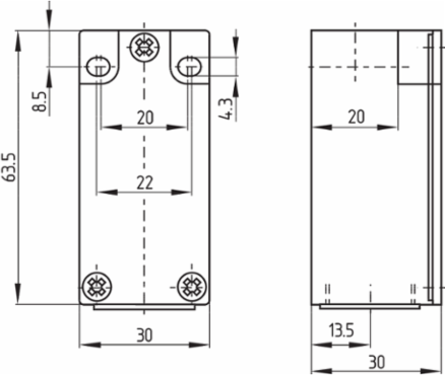

Mechanical data - Dimensions
| Length of sensor | 30 mm |
|---|---|
| Height of sensor | 75.5 mm |
| Width of sensor | 30 mm |
|---|
Ambient conditions - Insulation values
| Rated insulation voltage U | 500 V |
|---|
| Rated impulse withstand voltage U | 6 kV |
|---|
Safety classification - Safety outputs
| B | 20,000,000 Operations |
|---|
General data - Features
| Safety functions | Yes |
|---|---|
| Number of safety contacts | 1 |
| Number of auxiliary contacts | 1 |
|---|
General data
| Standards | BG-GS-ET-15 | EN ISO 13849-1 | EN IEC 60947-5-1 |
|---|---|
| Actuator type to EN 50047 | B |
| Gross weight | 145 g |
| Housing construction form | Norm construction design |
|---|---|
| Enclosure material | Metal, zinc die-cast |
Safety classification
| Standards | EN ISO 13849-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Ambient conditions
| Degree of protection | IP65 | IP67 |
|---|
| Ambient temperature | -30 ... +80 °C |
|---|
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|---|
| Cable section, maximum | 2.5 mm² |
| Cable section, minimum | 0.75 mm² |
|---|---|
| Note (Cable section) | All indications including the conductor ferrules. |
Mechanical data

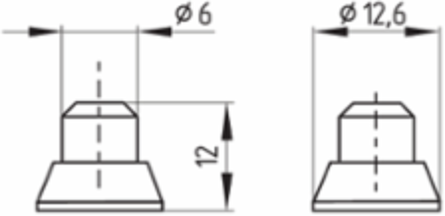

| Actuating element | Plunger |
|---|---|
| Actuating force, minimum | 9 N |
| Actuating speed, minimum | 60 mm/min |
| Note Bounce duration | Bounce duration in accordance with actuating speed |
| Mechanical life, minimum | 20,000,000 Operations |
|---|---|
| Positive break force, minimum | 19 N |
| Actuating speed, maximum | 1 m/s |
| Note (Switchover time) | Switchover time in accordance with actuating speed |
Approvals - Standards
| Certificates | cULus | CCC |
|---|
