Weidmuller 8000037605 TS35 MPC 1717 VER
- MPN: 8000037605
- PPN: WDM-8000037605
CAD
$20.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

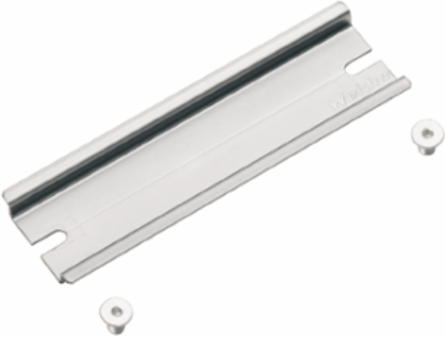

Rail, TS 35 x 7.5, TS 35, Length: 106 mm, without slot, Steel, galvanized, chromium-plated
Specifications
Dimensions And Weights
| Length | 106 mm |
|---|---|
| Width | 15 mm |
| Height | 7.5 mm |
| Depth | 7.5 mm |
| Net weight | 21.733 g |
| Length (inches) | 4.173 inch |
|---|---|
| Width (inches) | 0.591 inch |
| Height (inches) | 0.295 inch |
| Depth (inches) | 0.295 inch |
Classifications
| ETIM 6.0 | EC001285 |
|---|---|
| eClass 9.0 | 27-40-06-02 |
| eClass 10.0 | 27-40-06-02 |
| ETIM 7.0 | EC001285 |
|---|---|
| eClass 9.1 | 27-40-06-02 |
General Information On Accessories
| Material | Steel |
|---|
| Surface finish | galvanized, chromium-plated |
|---|
General Information
| Installation advice | Direct mounting |
|---|---|
| Material | Steel |
| Standards | DIN EN 60715 |
|---|---|
| Surface finish | galvanized, chromium-plated |
