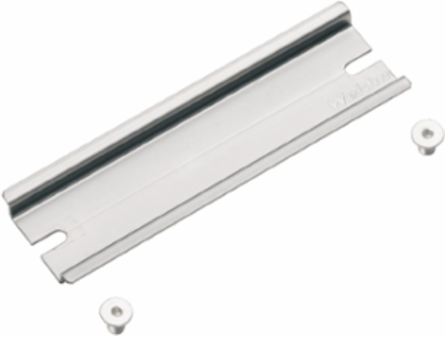

Weidmuller 8410510000 TS35X7.5 ST STB 1
- MPN: 8410510000
- PPN: WDM-8410510000
CAD
$20.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Rail, TS 35, TS 35 x 7.5, Length: 80 mm, without slot, Steel, galvanized, chromium-plated
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
General Information On Accessories
| Material | Steel |
|---|
| Surface finish | galvanized, chromium-plated |
|---|
Dimensions And Weights
| Length | 80 mm |
|---|---|
| Width | 35 mm |
| Height | 7.5 mm |
| Depth | 7.5 mm |
| Net weight | 31 g |
| Length (inches) | 3.15 inch |
|---|---|
| Width (inches) | 1.378 inch |
| Height (inches) | 0.295 inch |
| Depth (inches) | 0.295 inch |
Classifications
| ETIM 6.0 | EC001285 |
|---|---|
| eClass 9.0 | 27-40-06-02 |
| eClass 10.0 | 27-40-06-02 |
| ETIM 7.0 | EC001285 |
|---|---|
| eClass 9.1 | 27-40-06-02 |
General Information
| Installation advice | Direct mounting |
|---|---|
| Material | Steel |
| Standards | DIN EN 60715 |
|---|---|
| Surface finish | galvanized, chromium-plated |
