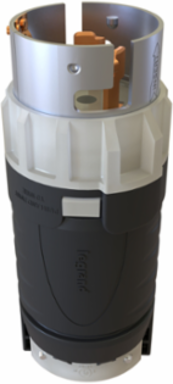

Pass & Seymour CS6365C TurnLok® 50A California Style 125/250V 3-Pole 4-Wire Locking Plug
- MPN: CS6365C
- UPC: 785007442526
- PPN: P-S-CS6365C
CAD
$184.52
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
50A Turnlok Plugs and Connectors make installing and securing your connections faster, safer and more dependable than ever. These devices are designed to withstand harsh environments. Each device features a simple push, twist and lock body assembly for greater productivity and labor savings in temporary power applications. The back body easily slides onto the device and locks in place with a quarter twist making installations faster, safer and more dependable.
Features
- Securing your installations is easier than ever. The back body easily slides onto the device and locks in place with a simple quarter twist. No time-consuming threading.
- An adjustable cord clamp is located outside the back body for greater flexibility to accommodate a wider range of cord sizes. Clamp screws are on the same plane for faster installation. Longer screws are included to adjust for larger cables.
- Same-plane hex head terminations for faster, safer installations with more torque and reduced risk of screwdriver slips. All screws are on the same plane for accurate, streamlined installation, saving time on the job.
- Industrial-strength, brass alloy plug blades and connector contacts resist heat rise and provide excellent conductivity.
- Impact- and corrosion-resistant durable nylon 66 shell material.
- Visible molded NEMA configuration and device rating.
- Newly designed external cord grips provide visible assurance of safe and proper cord retention.
- Integral flexible rubber cord gromet conforms to and seals around SO cord to provide protection from oils, water or chips entering wiring chamber.
Documentation & Downloads
Specifications
Key Specifications
| Height | 2.48 in |
|---|---|
| Length | 6.39 in |
| Width | 2.48 in |
| Product Line | Pass & Seymour |
| Amperage | 50.0 A |
| Standard | UL UL498 |
| Number of Wires | 4.0 |
| Standard | cULus E146159 |
| Application Sector | Industrial |
| Color | Black |
|---|---|
| Material | Nylon |
| Country of Origin | Mexico |
| Standard | RoHS |
| Voltage | 250.0 V |
| Type | Locking Plug |
| Contact Material | Brass |
| Application Sector | Commercial |
