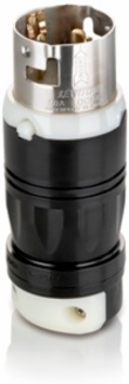

Leviton CS6365C 50 Amp, 125/250 Volt, Black & White Locking Plug, Industrial Grade
Leviton CS6365C 50 Amp, 125/250 Volt, Black & White Locking Plug, Industrial Grade
- MPN: CS6365C
- UPC: 078477326183
- PPN: LEV-CS6365C
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$188.25/ EA
Description
50Amp, 125/250V AC, Non-NEMA, 3P, 4W, Black & White Locking Plug, Industrial Grade, Grounding, California-Style(CS) – BLACK-WHITE
Features
- One piece contacts reduce friction and overheating
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Ratings and NEMA I.D. permanently marked on device
- Industry exclusive limited lifetime warranty
Specifications
Standards and Certifications
- CSA C22.2 No. 42
- File 152105
- RoHS
- Compliant
- Warranty
- Limited Lifetime Warranty
NOM057
UL 498File E13399
Material Specifications
- Assembly Screws
- Brass
- Color
- Black-White
- Face Module
- Nylon
- Ground Shunt
- Bronze
- Plug Blade
- 0.1000inch thick Brass
- Standard Cable Clamp
- Nylon
- Terminal Set Screw
- SS 302/304
Cable Clamp ScrewPhilips Head, SS 304
Dust ShieldSantoprene TPE
Ground PostBrass
Housing MaterialNylon
Plug Blade ShroudSS 302/304
Terminal Block0.062inch thick Copper
Wiring ChamberNylon
Mechanical Specifications
- Cord Range
- .680 - 1.125
- Terminal Accom.
- #10 min to #4max AWG Solid or Stranded Wire
- Torque Range
- allen wrench to 35 inch-lbs
Product IDRatings and Catalogue No. molded into face and stamped into shroud

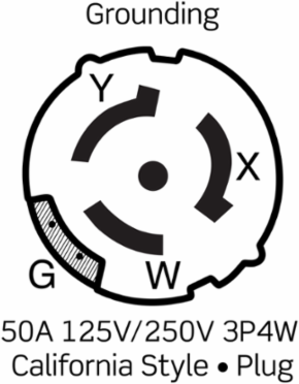

Terminal IDX, W, Y, Z and Green for ground
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Brand
- Black and White
- NEMA
- Non-NEMA
Device TypeLocking Plug
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 75°C
FlammabilityUL94V-2
Electrical Specifications
- Amperage
- 50 A
- Dielectric Voltage Withstand
- 2000V minimum per UL 498
- Maximum Working Voltage
- 125/250V as rated
- Temperature Rise
- Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
- Wire
- 4
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Pole3
Voltage125/250 VAC
