Schmersal 101092342 Position Switch TV10H 236-20Z, Thermoplastic, IP65, 30 mm Width, 20 Million Operations
- MPN: 101092342
- PPN: SCM-101092342
CAD
$123.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Position Switch TV10H 236-20Z, Thermoplastic, IP65, 30 mm Width, 20 Million Operations
Features
- 1 Cable entry M 20 x 1.5
- Thermoplastic enclosure
- Good resistance to oil and petroleum spirit
- Wide range of alternative actuators
- 30 mm x 58,5 mm x 30 mm
- Double-insulated
- Mounting details to EN 50047
- Actuator heads can be repositioned by 4 x 90°
- Lever angle adjustable in 10° steps
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 240 VAC
- Utilisation category DC-13
- 24 VDC

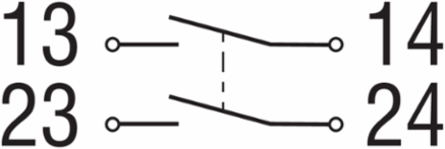

- Switching element
- Normally open contact (NO)
- Switching frequency
- 5,000 /h
Required rated short-circuit current1,000 A
Utilisation category AC-154 A
Utilisation category DC-131 A
Switching principleSlow action
Material of the contacts, electricalSilver
Note
- Note (General)
- Switch with 2 NO contacts are not for security tasks

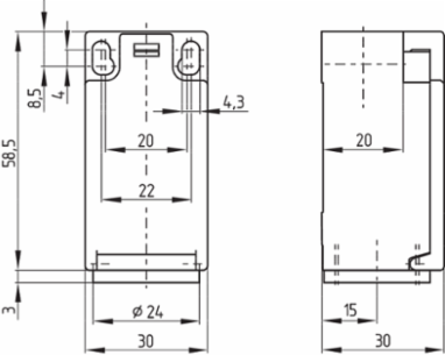

Mechanical data - Dimensions
- Length x Width x Height
- Height of sensor: 96.5 mm (without rod)
- Width of sensor
- 30 mm
Length of sensor43.5 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
Rated impulse withstand voltage U6 kV
General data - Features
- Number of auxiliary contacts
- 2
General data
- Standards
- BG-GS-ET-15 | EN ISO 13849-1 | EN IEC 60947-5-1
- Enclosure material
- Plastic, glass-fibre-reinforced
- Material of the rod
- Plastic
Housing construction formNorm construction design
Lever materialMetal film
Gross weight88 g
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP65 | IP67
Ambient temperature-30 ... +80 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2.5 mm²
Cable section, minimum0.75 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data

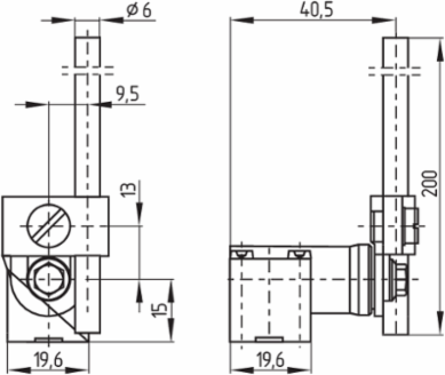

- Actuating element
- Rod lever
- Actuating speed, minimum
- 4,122 mm/min
- Note (Actuating speed)
- Actuating speed with actuating angle 30° to switch axis
- Note (Switchover time)
- Switchover time in accordance with actuating speed
Mechanical life, minimum20,000,000 Operations
Actuating speed, maximum1 m/s
Note Bounce durationBounce duration in accordance with actuating speed
Actuating torque, minimum0.2 Nm
Approvals - Standards
- Certificates
- cULus | CCC
