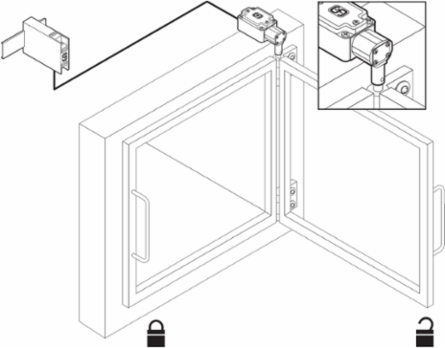

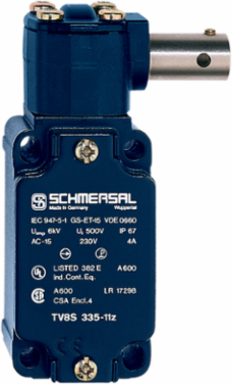

Schmersal 101168631 Hinge Safety Switch, IP67, 65.3 mm Length, 107 mm Height, 265 g Weight
- MPN: 101168631
- PPN: SCM-101168631
CAD
$236.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Hinge Safety Switch, IP67, 65.3 mm Length, 107 mm Height, 265 g Weight
Features
- 1 Cable entry M 20 x 1.5
- Metal enclosure
- Good resistance to oil and petroleum spirit
- Actuator heads can be repositioned by 4 x 90°
- 40,5 mm x 107 mm x 65,3 mm
- Actuator shaft can be turned 360°
Documentation & Downloads
Specifications
Mechanical data - connector side B
- Connector typ
- Female connector
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 4 A
- Utilisation category DC-13
- 4 A
- Switching principle
- Slow action
- Material of the contacts, electrical
- Silver
Utilisation category AC-15230 VAC
Utilisation category DC-1324 VDC
Switching elementOpener (NC)
Switching frequency1,000 /h
Note
- Note (General)
- By turning the head in 90° steps, 8 actuating planes are possible. A Torx T10 screwdriver is required for this purpose. Even when the screw is removed, the head is self-retaining. The switch can still not be tampered. | Adjustment tool: locking screw to fix, shaft pre-drilled to pin | Universal joint available to compensate for axial displacement (only for shaft bore 10 mm)

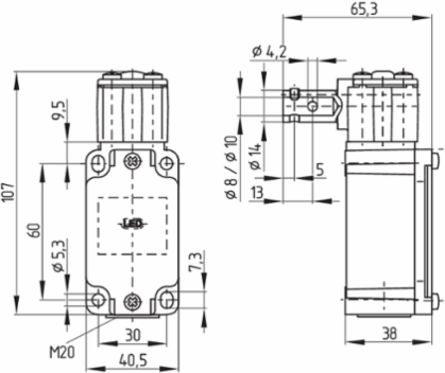

Mechanical data - Dimensions
- Length of sensor
- 65.3 mm
- Height of sensor
- 107 mm
Width of sensor40.5 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
Rated impulse withstand voltage U6 kV
Safety classification - Safety outputs
- B
- 20,000,000 Operations
General data - Features
- Number of safety contacts
- 2
General data
- Enclosure material
- Light alloy die-casting
- Gross weight
- 265 g
Enclosure coating materialpainted
Safety classification
- Standards
- BG-GS-ET-15 | EN ISO 13849-1 | EN IEC 60947-5-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
Ambient temperature-25 ... +70 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2.5 mm²
Cable section, minimum0.75 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data
- Actuating element
- Other

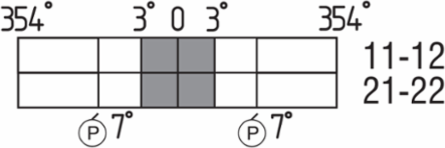

- Positive break angle
- 7 °
- Positive break torque
- 0.6 Nm
Mechanical life, minimum1,000,000 Operations
Mounting hole for the Shaft8 mm
Approvals - Standards
- Certificates
- cULus | CCC
