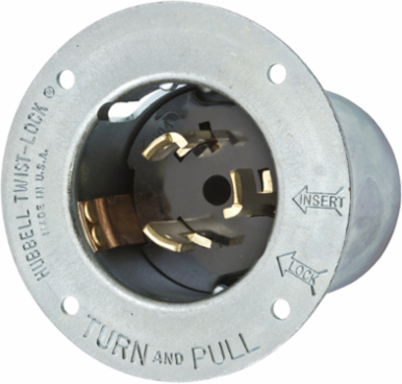

Hubbell Wiring Device-Kellems CS8375 Twist-Lock Flanged Inlet, 50A 3-Phase, 250V AC, 4-Wire, Black
- MPN: CS8375
- UPC: 783585829098
- PPN: HBL-CS8375
- UNSPSC: 39121406
CAD
$234.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non- NEMA, Screw Terminal, Black
Features
- Metallic flanged casing provides maximum strength and protection
- Thermoset interior provides superior heat resistance
- Standard Product
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Food Processing Guide
- General Literature Asset 3 Display Text
- Emergency Preparedness for Healthcare
- Current / Amperage Rating
- 50 A
- Height
- 2.62 in
- Length
- 2.17 in
- Amperage Rating
- 50 A
- Color
- Metallic
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Wires
- 4-Wire
- Size
- 2.17 in x 3.50 in x 2.62 in
- Standard
- Certified to CSA C22.2 No.42;Listed to UL 498
- Voltage Rating
- 3-Phase Delta 250 VAC
- Voltage Rating Description
- 3-Phase Delta 250 VAC
- Width
- 3.50 in
- Display Size
- Standard Sized Product
- Number Of Wires
- 4-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A150
- Current Rating
- 50 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.95 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585829097
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 2 Display Text50 Amp Twist-Lock® Devices
Country of OriginUnited States
Dimensions2.17 in x 3.50 in x 2.62 in
Industry Standard(s)Certified to CSA C22.2 No.42;Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V0;Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
Number of Poles3-Pole
PhaseThree Phase
Special FeaturesStandard Product
TypeFlanged Inlet
Wire Size#10 AWG to #6 AWG
Weight0.85 lb.
ConnectivityPressure Terminal Screws
Number Of Poles3-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLOCKING INLT, 50A 3PH 250V, 3P4W
Harmonization Code8536699999
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialSteel, Zinc Plated
BOX SIZE5.100x20.200x10.000 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585829098
Case Weight9.100 lb.
Lowest Level UOMEach
Pallet Height45.900 in
Pallet Weight737.100 lb.
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- No
