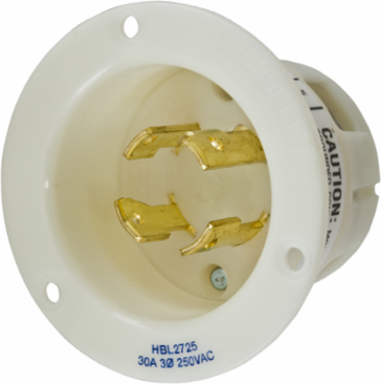

Hubbell Wiring Device-Kellems HBL2725 Twist-Lock Flanged Inlet, 30A 3-Phase 250V AC, 3-Pole 4-Wire Grounding
Hubbell Wiring Device-Kellems HBL2725 Twist-Lock Flanged Inlet, 30A 3-Phase 250V AC, 3-Pole 4-Wire Grounding
- MPN: HBL2725
- UPC: 783585039282
- PPN: HBL-HBL2725
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$82.05/ EA
Description
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15- 30P, Screw Terminal, White.
Features
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
- Standard Product
Specifications
Specifications
- Country of Origin
- US
- Dimensions
- 3.06 in x 3.06 in x 2.27 in
- Height
- 2.27 in
- Length
- 3.06 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Insulation
- Insulated Body
- Number of Poles
- 3-Pole
- Phase
- Three Phase
- Special Features
- Standard Product
- Type
- Flanged Inlet
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.20 lb.
- Connectivity
- Back Wired Screw Terminals
- Nema Rating
- L15-30P
- Number Of Wires
- 4-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 2725
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- BOX SIZE
- 6.700x10.200x8.300 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585039282
- Case Weight
- 3.468 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 47.600 in
- Pallet Weight
- 500.500 lb.
Current / Amperage Rating30 A
Each - Width3.300 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C. Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating30 A
ColorWhite
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingL15-30P
Number of Wires4-Wire
Size3.06 in x 3.06 in x 2.27 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Voltage Rating3 Phase 250 VAC
Voltage Rating Description3 Phase 250 VAC
Width3.06 in
Display SizeStandard Sized Product
Number Of Poles3-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG FLG-INLT, 30A 3P 250V, L15-30P, WH
Harmonization Code8536699902
MSDS FlagNo
Sub Class CodeA08A110
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.300 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585039281
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
