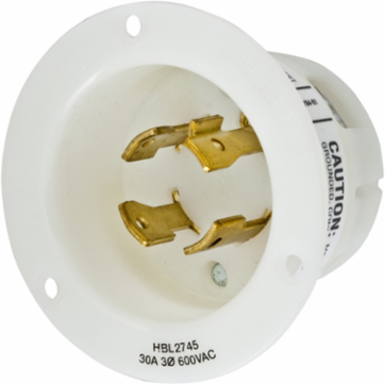

Hubbell Wiring Device-Kellems HBL2745 Twist-Lock Flanged Inlet, 30A 3-Phase, 600V AC, 3-Pole 4-Wire, White
- MPN: HBL2745
- UPC: 783585039411
- PPN: HBL-HBL2745
- UNSPSC: 39121406
CAD
$110.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, L17- 30P, Screw Terminal, White
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
- Standard Product
Specifications
Additional
- Voltage
- 3 Phase 600 VAC
- Phase
- Three Phase
- Number of Wires
- 4-Wire
- Operating Temperature
- -406C to 756C
- Width
- 3.06 in
- Weight
- 0.25 lb
- Mounting
- Flanged Inlet, Screw Mounting
- Terminal Screw Size
- #10-32
- Wire Size Range
- #16 AWG to #8 AWG
- Certification
- UL Listed, CSA Certified, RoHS Compliant
- Country of Origin
- US
Amperage30 A
Number of Poles3-Pole
Dielectric Strength2000V minimum
Length3.06 in
Height2.27 in
MaterialNylon
ConnectivityBack Wired Screw Terminals
Terminal Screw Drive TypesSlotted, Phillips, Robertson
NEMA RatingL17-30P
ColorWhite
