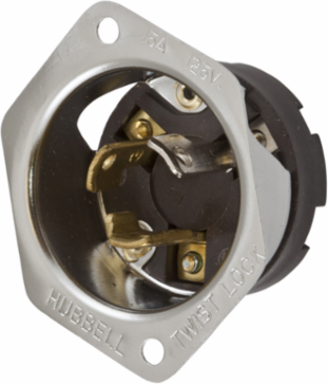

Hubbell Wiring Device-Kellems HBL4716 Twist-Lock Flanged Inlet, 15A 125V, 2-Pole 3-Wire, Stainless Steel
- MPN: HBL4716
- UPC: 783585236773
- PPN: HBL-HBL4716
- UNSPSC: 39121406
CAD
$49.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15P, Screw Terminal, Stainless Steel casing, Brown/Stainless.
Features
- Heat resistant thermoset construction
- Stainless steel casing
- #5-40 terminal screws
- Mounting screws included
- Metallic Flange
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.31 in x 1.75 in x 1.09 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec.W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 15 A
- Color
- Black
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- L5-15P
- Number of Wires
- 3-Wire
- Size
- 2.31 in x 1.75 in x 1.09 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec.W-C-596;Listed to UL 498
- Type
- Flanged Inlet
- Wire Size
- #18 AWG to #10 AWG
- Weight
- 0.10 lb.
- Connectivity
- Screw Terminals
- Nema Rating
- L5-15P
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 4716
- Material - Mounting Hardware
- Screw Mounting
- Material
- Stainless Steel
- BOX SIZE
- 3.200x12.300x2.800 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585236773
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585236772
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating15 A
Height1.09 in
Length2.31 in
Standards - RoHS Compliance StatusCM
ApplicationHeavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
InsulationInsulated Body
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesMetallic Flange
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating125 V
Voltage Rating Description125 V
Width1.75 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG FLG-INLT, 15A 125V, L6-15P, SS
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA08A110
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.35 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight7.450 lb.
Lowest Level UOMEach
Pallet Height47.000 in
Pallet Weight670.500 lb.
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
