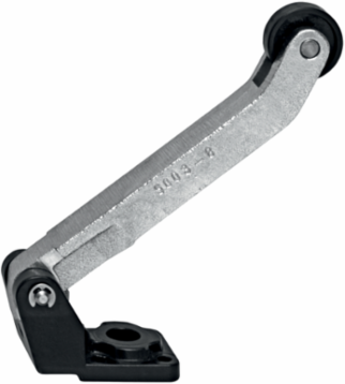

Schmersal 101057472 TX 064-21Y Position Switch, IP65, 149 mm Length, Metal Enclosure, 2 NO/1 NC
- MPN: 101057472
- PPN: SCM-101057472
CAD
$892.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TX 064-21Y Position Switch, IP65, 149 mm Length, Metal Enclosure, 2 NO/1 NC
Features
- Metal enclosure

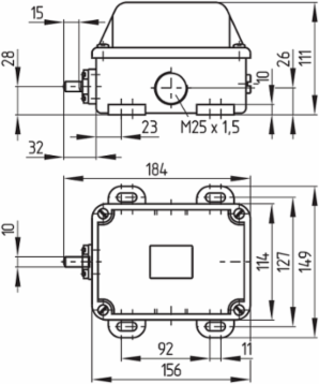

- 184 mm x 111 mm x 149 mm (basic component)
- 2 cable entries M 25 x 1.5
- 3 or 4 Contacts
- Actuator heads can be repositioned by 4 x 90°
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 25 A
- Utilisation category AC-15
- 25 A
- Note (Switching element)
- with double break
- Switching frequency
- 1,000 /h
Utilisation category AC-15400 VAC
Switching elementNO contact / NC contact
Switching principleSlow action
Material of the contacts, electricalSilver
Note
- Note (General)
- Actuation from the right should be avoided, since this reduces the mechanical life of the position switch.
Mechanical data - Dimensions
- Length of sensor
- 149 mm
- Width of Castor
- 6.5 mm
Height of sensor107 mm
Diameter of Castor25 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
Rated impulse withstand voltage U6 kV
Safety classification - Safety outputs
- B
- 2,000,000 Operations
General data - Features

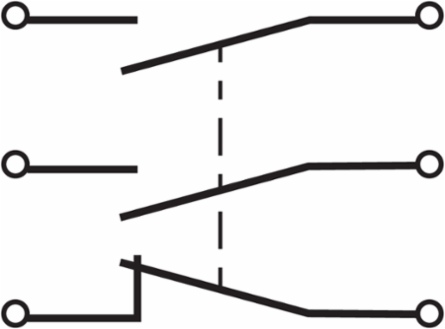

- Number of normally closed (NC)
- 1
Number of normally open (NO)2
General data
- Standards
- EN IEC 60947-5-1
- Slide form
- Castor
- Enclosure coating material
- painted
Working principlemechanical
Enclosure materialGrey cast iron, galvanised
Gross weight3,505 g
Ambient conditions
- Degree of protection
- IP65
Ambient temperature-30 ... +90 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 4 mm²
- Wire cross-section
- 11 AWG
Cable section, minimum1.5 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data

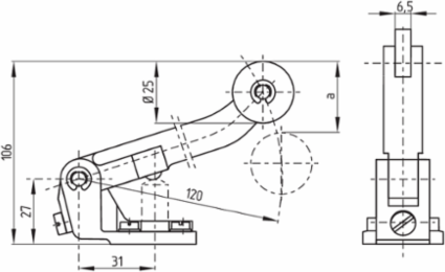

- Actuating element
- Offset roller lever
- Mechanical life, minimum
- 1,000,000 Operations
- Actuating angle, from right of switch axis
- 45 °
- Actuating speed, minimum
- 600 mm/min
- Note (Actuating speed)
- Actuating speed with vertical actuating angle to switch axis
Roller materialPlastic
Actuating angle, from left of switch axis30 °
Contact opening2 x 4 mm
Actuating speed, maximum1 m/s
Approvals - Standards
- Certificates
- cULus | CCC
