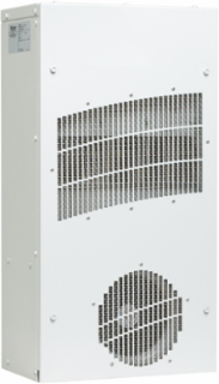

nVent Hoffman TX231416100 ClimaGuard Outdoor Heat Exchanger 23 x 12 x 7.1 Inch, 115V, 14W/ F

MPN: TX231416100
UPC: 783510188542
PPN: HOF-TX231416100
UNSPSC: 40101802

$3306.15

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

ClimaGuard Outdoor Heat Exchangers offer reliable, low maintenance, closed-loop cooling. This ClimaGuard Air-to-Air Heat Exchanger Outdoor, item TX231416100 is rated for X23 14w/F 115v

Features

Unique counterflow aluminum core for high efficiency and high performance heat transfer
Engineered for temperature extremes, corrosive environments and wind driven rain
Models for 24 VDC, 48 VDC, 115 VAC and 230 VAC power supplies
Variable speed blowers standard on DC powered units for quiet running
Filterless design for low maintenance and easy cleaning
Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
Easy-mount flanges for simple installation
Surface or recessed mount capable
Every unit functionally tested before shipping
Mounting hardware, gaskets and user manual furnished with the unit

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Capacity Watts Per °C	25
Height (H)	584
Depth (D)	180
Operating Temperature	-40
Product Family	ClimaGuard
Finish	Powder Coated
Color Code	RAL 7035
Weight	32
Max Watts Per °F	14
Thickness (T)	1.21
Temperature Range	-40 to 149 deg F
Housing Material	Mild Steel
Dimensions	23 x 12 x 7.1 in

Capacity Watts Per °F	14
Nominal Voltage	115
Width (W)	305
Max Current	0.6
Protection Rating	NEMA Type 4
Material	Mild Steel
Color	Light Gray
NEMA Rating	4 Watertight
Voltage AC	100
Max Watts Per °C	25
Sub Brand	ClimaGuard
Power Consumption	14 W per deg F max
Mounting	Surface Mounted
