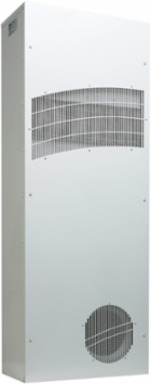

nVent Hoffman TX528324100 ClimaGuard Outdoor Heat Exchanger 52 x 19.7 x 10.1 Inch, 24V, NEMA Type 4
- MPN: TX528324100
- UPC: 783510234386
- PPN: HOF-TX528324100
- UNSPSC: 40101802
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ClimaGuard Outdoor Heat Exchangers offer reliable, low maintenance, closed-loop cooling. This ClimaGuard Air-to-Air Heat Exchanger Outdoor, item TX528324100 is rated for X52 83w/F 24v
Features
- Unique counterflow aluminum core for high efficiency and high performance heat transfer
- Engineered for temperature extremes, corrosive environments and wind driven rain
- Models for 24 VDC, 48 VDC, 115 VAC and 230 VAC power supplies
- Variable speed blowers standard on DC powered units for quiet running
- Filterless design for low maintenance and easy cleaning
- Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Surface or recessed mount capable
- Every unit functionally tested before shipping
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Capacity Watts Per °C
- 150
- Height (H)
- 1,321
- Depth (D)
- 257
- Operating Temperature
- -40
- Product Family
- ClimaGuard
- Finish
- Powder Coated
- Color Code
- RAL 7035
- Weight
- 103
- Voltage DC
- 24
- Thickness (T)
- 1.21
- Temperature Range
- -40 to 149 deg F
- Housing Material
- Mild Steel
- Dimensions
- 52 x 19.7 x 10.1 in
Capacity Watts Per °F83
Nominal Voltage24
Width (W)500
Max Current21.1
Protection RatingNEMA Type 4
MaterialMild Steel
ColorLight Gray
NEMA Rating4 Watertight
Max Watts Per °F83
Max Watts Per °C150
Sub BrandClimaGuard
Power Consumption83 W per deg F max
MountingSurface Mounted
