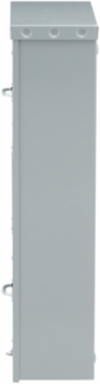

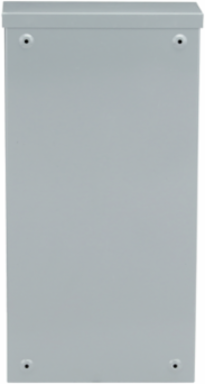

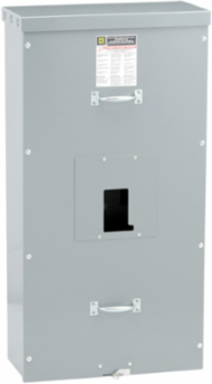

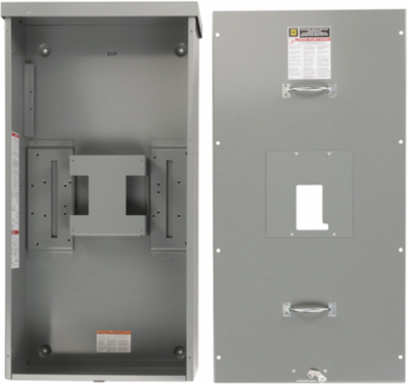

Square D M800S PowerPacT Circuit Breaker Enclosure, 300-800A, Steel, NEMA 1, 3-Pole
- MPN: M800S
- UPC: 785901430438
- PPN: SCH-M800S
CAD
$2009.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The enclosures for the family of PowerPact circuit breakers H- through Q-frame are cULus listed unless otherwise noted. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. All enclosures will accept 80% rated circuit breakers. This is a PowerPact M,Molded Case Circuit Breaker Enclosure, 300A to 800A, TYPE 1. This enclosure is made from steel. This enclosure complies to UL & CSA certifications. The dimensions are 1025.52 mm (H), 533.4 mm (W), 247.65 mm (D). This product comes with an 18 month warranty.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth247.65 mm
Complementary Attributes
- Line Rated Current
- 300-800 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Circuit Breaker Type
- PKL, PJL, MGL, PGL, MJL, PLL
- Certificate Agency
- CSA, UL
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 62 kg CO2 eq., 61.95259873502614
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 253 kg CO2 eq., 252.91144092879745
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Destination
- circuit breaker M 3Pcircuit breaker P 2P
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 327 kg CO2 eq.
- Pep Code
- ENVPEP1408006EN
- Pep Verification Date
- 2025-09-25
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 1025.52 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 43.3 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Number Of Poles3P, 2P
Carbon Footprint Of The Distribution Phase [A4]12.513162762866946, 13 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.07262980573422458, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-26
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1906
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Enclosure Materialsteel
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %95
Width Nominal533.4 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code7326908688
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 327.44983223242474
- Eu Rohs Directive
- Compliant
- Nema Degree Of Protection
- NEMA 1
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1408006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP1408006EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-09-25
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
