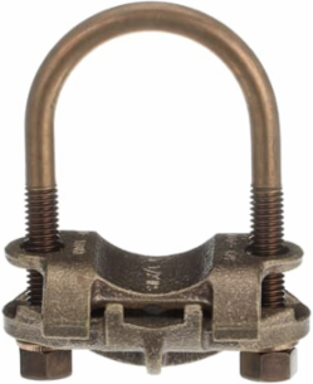

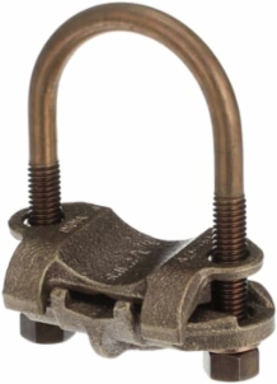

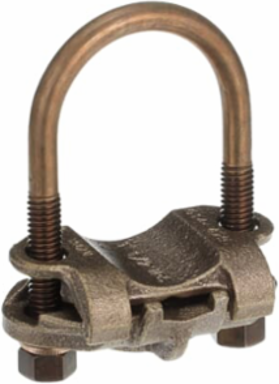

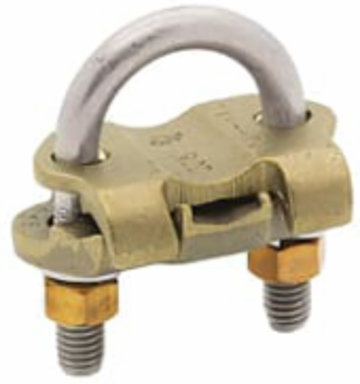

Blackburn GUV15821 U BOLT GRD CLAMP COND MAX 2/0 MIN 4

U BOLT GRD CLAMP COND MAX 2/0 MIN 4 - https://media.province-electric.com/new_abb/2023q3/images/medium/7f5d741d6c62bd8e19c8fae9a56b695844065169-medium.png

U BOLT GRD CLAMP COND MAX 2/0 MIN 4 - https://media.province-electric.com/new_abb/2023q3/images/medium/e5dec80f3206036b0a3586faea90458c09e6530c-medium.png

U BOLT GRD CLAMP COND MAX 2/0 MIN 4 - https://media.province-electric.com/new_abb/2023q3/images/medium/a43807e88fdf6f3c1d17e6bc619b2b9e7752d123-medium.png

U BOLT GRD CLAMP COND MAX 2/0 MIN 4

U BOLT GRD CLAMP COND MAX 2/0 MIN 4

U BOLT GRD CLAMP COND MAX 2/0 MIN 4

U BOLT GRD CLAMP COND MAX 2/0 MIN 4

Blackburn GUV15821 U BOLT GRD CLAMP COND MAX 2/0 MIN 4

MPN: GUV15821
UPC: 783786803620
PPN: T-B-GUV15821
UNSPSC: 39121613

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$239.68/ EA

Loading add to cart quantity...

Description

U-Bolt Copper Ground Clamp, Stainless Steel U-Bolt, Wire Range 4 - 2/0, Rod Size 1-5/8 to 1-7/8 Inches, IPS Pipe Size Max 1-1/2 Inches, Length 3-15/16 Inches, Width 3-3/16 Inches, Depth 1-9/16 Inches

Specifications

Additional Information

Brand / Label: Blackburn / EZGROUND

Insulation Material: No

Product Name: BLACKBURN GROUNDING

Special Functions: Excellent for connecting copper or copper-clad steel grounding conductor to ground rod or pipe. Specially designed spacer provides proper alignment between cable and elctrode and affords more positive contact area.

Effective Date19991027

Material of ConductorCopper

Product TypeGround Clamp

StandardsUL E3060, CSA 12798

Classifications

WEEE Category: Product Not in WEEE Scope

IDEA Granular Category Code (IGCC)4909 >> Grounding devices or assemblies

Ordering

Country of Origin: India (IN)

Selling Unit of Measureeach

Dimensions

Product Net Depth / Length: 3-15/16 in
