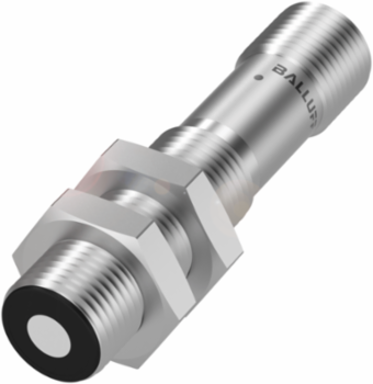

Balluff BUS M12M1-NPX-02/015-S04G Ultrasonic sensors with a digital output BUS M12M1-NPX-02/015-S04G
- MPN: BUS M12M1-NPX-02/015-S04G
- PPN: BAL-BUS0063
CAD
$551.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
They measure fill levels, heights and sag without making contact. Because they are universally applicable, they work independently of color and surface texture. High resolution, high ranges and small blind spots guarantee the utmost precision. The ultrasonic sensors are distinguished by their voltage or power output and variants with an additional switching output.
Documentation & Downloads
Specifications
Key Specifications
- Style
- Ø 12 mm
- Connection
- Connector, M12x1-Male, 4-pin
- Material sensing surface
- PU foam/Epoxy resin/Glass
- Switching frequency
- 25 Hz
- Ambient temperature
- -25-70 °C
- Repeat accuracy
- ± 0.15 % FS
Switching outputNPN NO/NC
Housing materialNickel-plated brassPBT
Range20-250 mm
Approval/ConformitycULus LISTED, CE, EAC, WEEE
IP ratingIP67
Operating voltage Ub10-30 VDC
