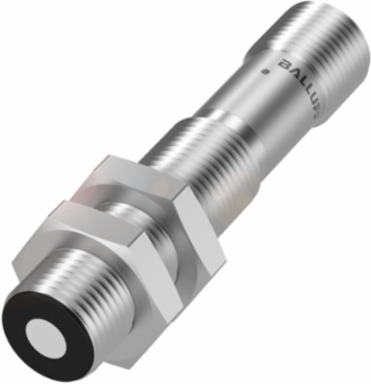

Balluff BUS M12M1-XA-02/015-S04G Ultrasonic sensors with analog output BUS M12M1-XA-02/015-S04G
- MPN: BUS M12M1-XA-02/015-S04G
- PPN: BAL-BUS0067
CAD
$722.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Position detection or object detection in solid, powdery and fluid media – they count and monitor the presence of objects without contact. Universally applicable, they work independently of color and surface texture. Fog, dust and impurities are not a problem for them. Their high resolution and small blind spots guarantee the highest precision. Ultrasonic sensors distinguish themselves by means of their output signal.
Documentation & Downloads
Specifications
Key Specifications
| Style | Ø 12 mm |
|---|---|
| Connection | Connector, M12x1-Male, 4-pin |
| Material sensing surface | PU foam/Epoxy resin/Glass |
| Approval/Conformity | cULus LISTED, CE, EAC, WEEE |
| IP rating | IP67 |
| Operating voltage Ub | 15-30 VDC |
| Analog output | Analog, voltage 0…10 Vlinear rising/falling |
|---|---|
| Housing material | Nickel-plated brassPBT |
| Range | 20-250 mm |
| Ambient temperature | -25-70 °C |
| Repeat accuracy | ± 0.15 % FS |
