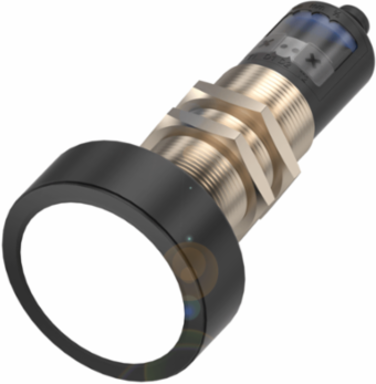

Balluff BUS M30M1-PWX-60/600-S92K Ultrasonic sensors with a digital output BUS M30M1-PWX-60/600-S92K
Balluff BUS M30M1-PWX-60/600-S92K Ultrasonic sensors with a digital output BUS M30M1-PWX-60/600-S92K
- MPN: BUS M30M1-PWX-60/600-S92K
- PPN: BAL-BUS003Z
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$904.05/ EA
Description
They measure fill levels, heights and sag without making contact. Because they are universally applicable, they work independently of color and surface texture. High resolution, high ranges and small blind spots guarantee the utmost precision. The ultrasonic sensors are distinguished by their voltage or power output and variants with an additional switching output.
Specifications
Specifications
- Style
- Ø 65 mm
- Connection
- Connector, M12x1-Male, 5-pin
- Material sensing surface
- PU foam/Epoxy resin/Glass
- Switching frequency
- 3 Hz
- Ambient temperature
- -25-70 °C
- Repeat accuracy
- ± 0.15 % FS
Switching output2x PNP NO/NC
Housing materialBrassPBT, TPU
Range600-8000 mm
Approval/ConformitycULus LISTED, CE, EAC, WEEE
IP ratingIP67
Operating voltage Ub9-30 VDC
Downloads
