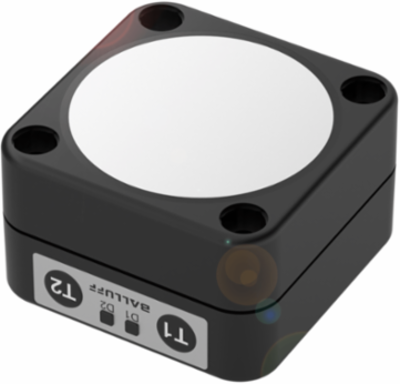

Balluff BUS Q62K1-GPXI-60/600-S92K Ultrasonic sensors with a digital output BUS Q62K1-GPXI-60/600-S92K
Balluff BUS Q62K1-GPXI-60/600-S92K Ultrasonic sensors with a digital output BUS Q62K1-GPXI-60/600-S92K
- MPN: BUS Q62K1-GPXI-60/600-S92K
- PPN: BAL-BUS006E
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$600.66/ EA
Description
They measure fill levels, heights and sag without making contact. Because they are universally applicable, they work independently of color and surface texture. High resolution, high ranges and small blind spots guarantee the utmost precision. The ultrasonic sensors are distinguished by their voltage or power output and variants with an additional switching output.
Specifications
Specifications
- Style
- block style
- Switching output
- PNP/NPN NO/NC push-pull
- Housing material
- PBT
- Range
- 600-8000 mm
- Approval/Conformity
- cULus LISTED, CE, EAC, WEEE
- IP rating
- IP67
- Operating voltage Ub
- 9-30 VDC
InterfaceIO-Link 1.0
ConnectionConnector, M12x1-Male, 5-pin
Material sensing surfacePU foam/Epoxy resin/Glass
Switching frequency3 Hz
Ambient temperature-25-70 °C
Repeat accuracy± 0.15 % FS
